Cow Dung Excrement Dehydrator/solid and liquid separating machine,Dry and wet separator

Product Description

Product Description
Slughterhouse waste liquid dung processing solid and liquid separating machine
Introduction of slughterhouse waste liquid dung processing solid and liquid separating machine
It can be used to separate the liquid animal waste into liquid fertilier and solid fertilizer. The liquid fertilizer can be directly used to crops to asbord, while the solid fertilizer can be used to the area lack of fertilizer, and improve the soil and change into compound organic fertilizer through fermentation.
Working principle of slughterhouse waste liquid dung processing solid and liquid separating machine
1.Sludge pump in the manure pits upgrade the original fecal residue to solid-liquid separator,the extrusion screw which is installed in the mesh will push the original fecal residue to move forward by 46 rev / min speed.
2. Dry product will come out from discharge outlet by pressing of cylinder.
The liquid( which is filtered through the sieve mesh )will flow into the conditioning tanks.

Features of slughterhouse waste liquid dung processing solid and liquid separating machine
1. small; low rotate speed; simple operation; convenient installation and maintenance;low cost; high efficiency; fast investment return, no need to add any flocculating agent.
2. It will separate the original livestock manure to liquid and solid organic fertilizer:the liquid organic fertilizer can be directly used for crops; the solid organic fertilizer can be shipped to regions that lack of fertilizer to improve the soil structure.
3. the solid dung can also be made into granulate fish feed.
Technical parameters of slughterhouse waste liquid dung processing solid and liquid separating machine

Model	Capacity(m3/h)			Weight
	Liquid cow dung	Liquid pig dung	Liquid chicken dung
JX-180	4-6	5-12	2-4	75kg
JX-210	5-8	10-16	3-5	115kg
JX- 260	7—10	15-20	5-7	165kg

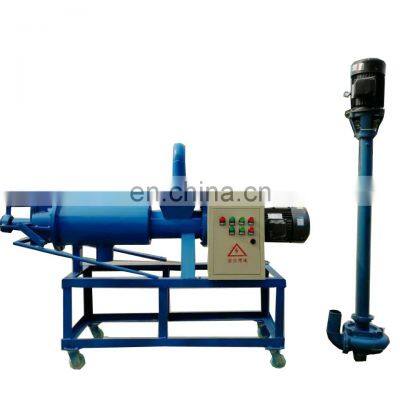

Pictures of of slughterhouse waste liquid dung processing solid and liquid separating machine
