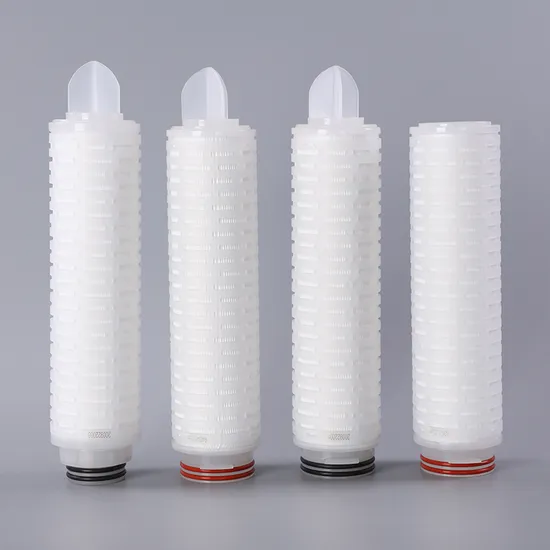

Hydrophilic Pes (Polyethersulfone) Membrane Pleated Cartridge Filters 0.22/0.45/0.65 Micron for Beverage Sterile Filtration

Product Description

FAE Series polyethersulfone (PES) membrane filter is designed to comply with all FDA requirements for the food & beverage industry. The filter media is an asymmetric PES membrane that exhibits low protein-binding characteristics. FAE filter is an excellent choice as a final filter prior to bottling or storage of beverages and liquid food products.
Applications
- Brewing
- Wine
- Soft Drinks
- Bottled Water
- Dairy
- Distilled Spirits
- Food and Ingredients
Features
- Durable PES and PP components
- Excellent chemical compatibility
- Repeated sterilization capability for economical operation
- 100% integrity tested during manufacture
Quality
- Filter Cartridges are manufacturered in a clean room environment
- Manufacturered according to ISO9001:2015 certified quality management system
Food Contact Compliance
- Materials of construction comply with FDA regulations for food and beverage contact use as detailed in the US Code of Federal Regulations 21CFR
- Materials used to produce filter media and hardware meet the specifications for biological safety per USP Calss VI-121C for plastics
- Filter cartridges passed European Commission Directives (EU10/2011)
- Halal Certified
Product Specifications

Dimensions	Outer Diameter	69mm
	Length	5", 10", 20", 30", 40"
Material of Constructions	Media	PES
	Support	PP
	Cage/Core/End	PP
	O-Ring	Silicone, EPDM , FKM
Performance	Max. Operating Temperature	80ºC
	Max. Operating DP	4 Bar@21ºC , 2.4 Bar@80ºC
	Sanitization	Hot water 100cycles 20 minutes at 85-90ºC
	Filtration Area	0.65 m² / 10" Filter cartridges

Ordering Information
