CATV Optical Amplifier 1550nm 4 Outputs High Power EDFA
| US$5.00-2,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LAGG-C1590S-20A
Condition
New
Transport Package
Blister Pack
Trademark
Linksall
Origin
China
HS Code
8517706000
Production Capacity
100, 000 Per Year
Product Description

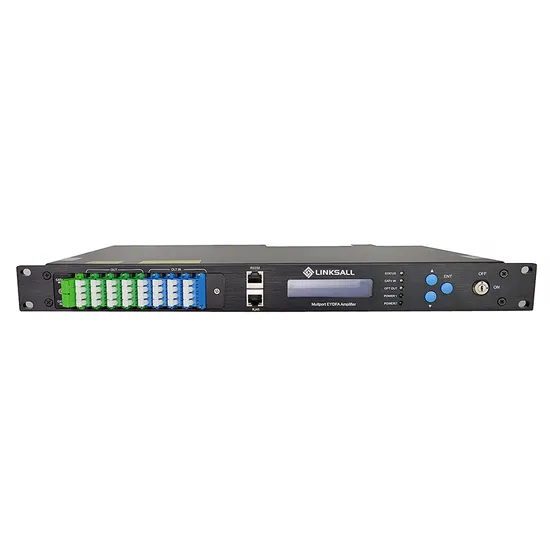

CATV EDFA 1550nm 1U Optical Fiber Amplifier
Applications
LAGG-C1590S-20A style 1U 1550nm 8 ports CATV Optical Fiber Amplifier EDFA with gain spectrum band within1540~1563nm, which is mainly designed for the application of CATV or 1~8 continuous branding channel (ITU wavelength) and also offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities.
LAGG-C1590S-20A 1U 1550nm 8 ports CATV Optical Fiber Amplifier EDFA . can realize Single wave transmission, CWDM three waves in single fiber, flat gain. DWDM; it is important fiber transmission equipment of building large and medium - sized CATV network, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon.
| Item | Unit | Technical paremeter | Supplement | |
| CATV operation wavelength | nm | 1545~1565 | CATV | |
| OLT pass wavelength | nm | 1310/1490 | PON | |
| CATV operation wavelength loss | dB | 0.8 | 1550nm | |
| OLT pass wavelength loss | dB | 0.8 | 1310/1490nm | |
| Number of uplink optical ports (for OLT) | pcs | 64 | | |
| Input optical power | dBm | -5 ~ +10 | | |
| Max output power | dBm | 40 | | |
| Output power stability | dBm | ±0.5 | | |
| Noise | dB | ≤ 5.0 | Input power0dBm,λ=1550nm | |
| Return loss | Input | dB | ≥ 45 | |
| Output | dB | ≥ 45 | | |
| Optical connector | | SC/APC, SC/UPC | | |
| C/N | dB | ≥ 50 | | |
| C/CTB | dB | ≥ 63 | ||
| C/CSO | dB | ≥ 63 | ||
| Supply voltage | V | AC170V~265V; AC90~135V; DC36~72V | | |
| Power Consume | W | ≤ 90 | | |
| Network management interface | | RJ45 | | |
| Working temperature | ºC | -10 - +42 | | |
| Max relative humidity | % | Max 5% no condensation | | |
| Storage temperature | ºC | -30 ~ +70 | | |
| Devise size | mm | 464(L)*440(W)*89(H) | | |
| Package size | mm | 640(L)*640(W)*200(H) | | |
