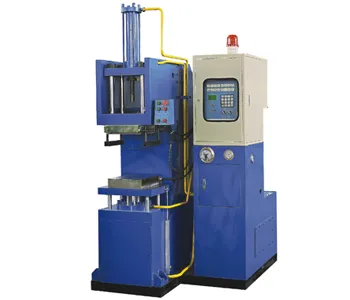

Transfer Type Rubber Molding Machine

Product Description

Transfer type molding machine for rubber
It is an advanced rubber pressure molding equipment with compact structure, wide applicability and high degree of automation, especially, it is suitable for producing rubber model products with metallic insert, complex shape, big cross-section and thick-wall., these products' process is complex and more difficult to form. Among them "the multi-purpose rubber transfer type molding machine (semiautomatic rubber injection molding machine) based on the frequency conversion technology" was established as National Science and Technology Ministry innovation fund project of technology type medium and small enterprises.
Feature: Clamping cylinder clamps mould first, then injection Cylinder press rubber material into mould cavity uniformly. Few fin, precision geometric size, physical mechanical Performances are uniform and stable. The main moving platen raises rapidly, clamps slowly, declines rapidly, production efficiency is improved and the mould isprotected It uses automatic in-out mould and ejection mechanism, reduces labor intensity and avoids the artificial damage to mould It has two working mode of point moving and semi automation. Users can choose PLC control and 5.7-inch touch-control screen imported from Siemens or Mitsubishi

Model	XZB-D400*400/630	XZB-D500*500/1000	XZB-D550*600/2000	XZB-D650*700/3000	XZB-D850*1000/4000	XZB-D1000*1200/6000
Clamping force	630KN	1000KN	2000KN	3000KN	4000KN	6000KN
Heating plate size	400*400mm	500*500mm	550*600mm	650*700mm	850*1000mm	1000*1200mm
Heating plate distance	250-350mm	200-400mm	180-480mm	300-500mm	80-1200mm	400-500mm
Material cylinder spec.	φ 70*215mm	φ 80*255mm	φ 90*290mm	φ 110*355mm	φ 130*445mm	φ 160*780mm
Injection stroke	305mm	380mm	450mm	580mm	680mm	1060mm
Ejector stroke	250mm	250mm	300mm	350mm
Max. ejector force	40KN	60KN	60KN	60KN
Motor power	5.5KW	5.5kw	5.5kw	5.5kw	7.5+4kw	11+11kw
heating power	6.4KW	9.8kw	12.6kw	19kw	34kw	52kw
Dimension(L*W*H)	1550*1850*(2500-2600)mm	1660*2100*(2800-3000)mm	1900*2400*(3000-3200)mm	2100*2700*(3650-3850)mm	2500*3500*94800-5200)mm	2700*4100*(5780-5880)mm
Weight	2300kgs	3500kgs	4800kgs	8200kgs	16000kgs	26000kgs

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.
