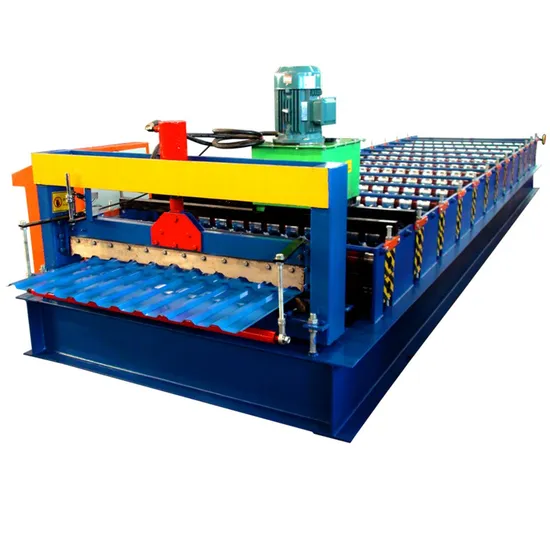

China Color Steel Corrugated Roofing Wall Iron Sheet Making Corrugated Roll Forming Machine

Product Description

Russia special c21 Equipment for the production of metal tiles
↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓
production specification
1. the advantage of c21 colored steel roof sheet machine
it has reasinable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the costomer with limit area or site operation.

2. Main Parameter and specification of the colored steel roof sheet machine
We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.
Configurations: 5t manual uncoiler, forming machine, cutter, hydraulic system, controller, output table
1.Control: full-auto PLC inverter encoder
2.Station: 14 stages
3.Main power: 4KW
4.Pump power: 3KW
5.Roller dia: Φ80mm
6.Line speed: 14m/min
7.Coil width: 1250mm
8.Cover width: 1160mm
9.Coil thickness: 0.35-0.6mm
10.Blade STD: Cr12 hardening treatment
11.Roller STD: 45#steel hardening with Chrome coating
12.Overall size: 6000mm×1550mm×1450mm
13.Weight: about 3.5 tons
14.Certificate: CE/ISO/TUV
↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓
packing and shipping
company information
↓↓↓↓↓Click here to get in touch with us↓↓↓↓↓

FAQ
1:How to play order:
Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK.
2:How to visit our company:
Fly to Beijing airport:By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3:When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.
4.What's the after- sale service:
we sent technician to your country to fix the machine.The buyer should bear all the cost including: visa, round trip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
5.How about the warranty:12 months limits warranty.
