Lf-110 Paper Cup Machine Disposable Paper Cup Forming Machine Price

Product Description

LIFENG NEW TYPE PAPER CUP MAKING MACHINE! Product Description LF-110 MIDDLE-SPEED PAPER CUP MACHINE FORMING MACHINE

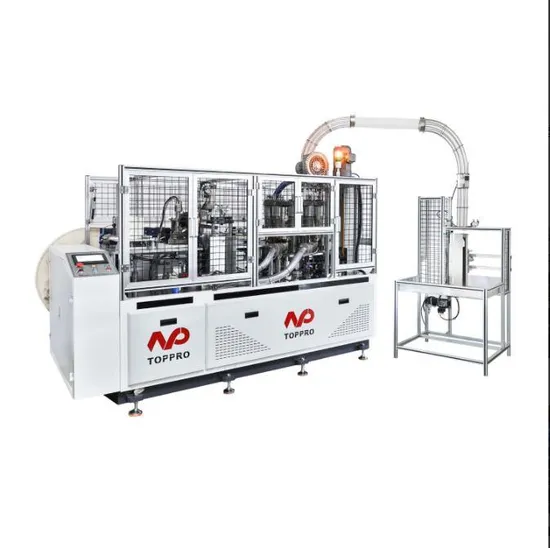

LF-110 MID-speed paper cup forming machine is a multi station high-speed automatic
machine producing both single and double PE coated drink cups through
continuous process of automatic paper feeding,sealing,oil injection,bottom
cutting,heating,knurling,curling and stacking.The machine adopting hot air system,PLC
control,servo motor driving,full-automatic failure warning,counting,detection,stopping,etc. This machine speed can reach100-110pcs/min
Product Parameters

Model	LF-110
Paper bowl Size	Bottom:48-70mm Top: 70-95mm Height: 60-135mm
Raw Material	One-side or two-side PE coated paper(Singe PE or Double PE coated paper)
Speed	100-110pcs/min
Suitable paper weight	170-350gsm
Voltage supply	380v50hz 3-phase *If user's voltage supply is different, please inform us in advance.
Working Air Source	Air pressure 0.6-0.8mpa 0.4m3/min User should buy Air Compressor
General power	16kw
Net weight	1800kgs
Measurement (mm)	2500*1100*1500
Cup Side Sealing	Ultrasonic

Detailed Photos 1. The core components adopt open cam design, with gear motor
2. Machine has full automatic lubrication by oil pump and filtration, more convenient for maintenance.
3. Use hot air heater system to make bottom more perfect and ensure the accurancy.
4. Control panel use touch screen, a clearer vision, the whole electrical appliances adopt imported configuration, have high generality and good performance, and facilitate equipment maintenance.
5. Use new rotary type paper fan feeding system, instead of traditional linear bearing, to ensure machine performance more stable and faster machine speed.
Packaging & Shipping our paper cup machine all package with strong woodencase,and also will send you a tool box,english manual and electric diagram with machine,also will send you a CD to teach you how to operate machine.
