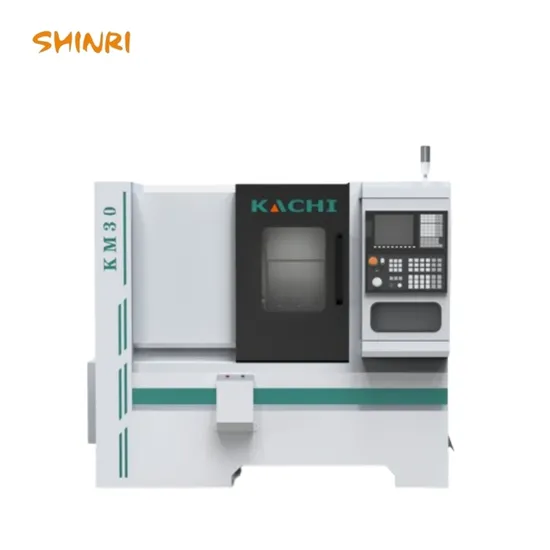

Km30 35-Degree Slant Bed CNC Lathe Gang Type Tool Machine
| US$5,800.00-28,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KM30
Type
Horizontal Lathe
Processing Accessory
Gang Tool
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Net Weight
1360kg
Spindle Nose
A2-5
Max. Turning Length
200mm
Max. Travel X/Z
350/300mm
Transport Package
Plywood Case
Specification
1880*1555*1570
Trademark
Shinri
Origin
China
HS Code
8458110090
Production Capacity
More Than 3500 Units Per Year
Product Description
KM30 Slant Bed CNC Lathe 1. Modular design and manufacture, the overall structure is compact and cost-effective. 2. The bed is made of wear-resistant iron, which has good rigidity, large force, high precision, and stable operation. The 35° inclined bed is conducive to the up and down of the workpiece and the discharge of iron chips.3. The main drive of the machine tool is driven by a servo spindle motor, which can meet the requirements of different processing speeds.
4. Linear guides are used in X and Z directions, and linear guides are used in X and Z directions, which improves the positioning accuracy and running stability of each moving part of the machine tool
5. The machine tool is suitable for large, medium and small batches, multi-variety and multi-specification parts with strong adaptability, especially the processing of special-shaped parts including conical surface and spherical surface can show its high efficiency. The quality is stable and reliable.
6. The protection of the whole machine tool reduces noise and improves the machine tool's ability to prevent water, rust and iron chips.
Product Parameters
| Item | Specification | Unit | KM35 |
| Machining capacity | Max. swing over bed | mm | Φ360 |
| Max. diameter of swing over pallet | mm | Φ90 | |
| Max. turning length | mm | 200 | |
| Travel | Max. travel X axis | mm | 350 |
| Max. travel Z axis | mm | 300 | |
| Spindle | Max. spindle speed | r/min | 3000 |
| Spindle nose | A2-5 | ||
| Spindle hole diameter | mm | Φ49 | |
| Feed rate | Rapia travel speed(X/Z) | m/min | 20 |
| Overall dimension | L×W×H | mm | 1880×1555×1570 |
| Machine weight | Net weight | Kg | 1360 |
Machining workshop
