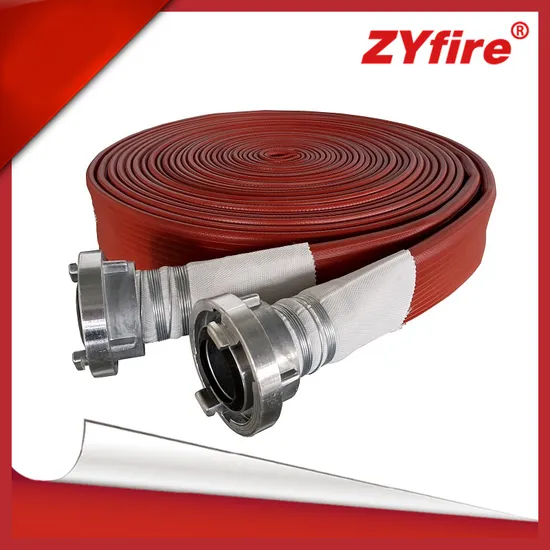

Zyfire BS6391 UL Certified Single Jacket Rubber Covered Layflat NBR Lining Fire Hose
| US$2.00-20.00 | 1,000 Meters (MOQ) |
Basic Info.
Model NO.
Lex-us
Hose Coupling Type
BS 336/Storz/DSP
Fire Hose Length
1-100m
Working Pressure
15bar
Diameter
40mm, 45mm, 50mm, 65mm
Lining
With Lining
Weaving Type
Twill Weaving
Hose Coupling Structure
Plug-in
Color
Customized
Wp
15bar
Bp
45bar
Transport Package
in Carton
Specification
BS6391 NBR Covered
Trademark
ZYfire
Origin
China
HS Code
40093200
Production Capacity
1000000m/Month
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 50.00cm
Package Gross Weight
5.000kg
Product Description
ZYfire BS6391 UL Certified Single Jacket Rubber Covered Layflat NBR Lining Fire HoseProduct Description
ZYfire Hose Corporation, founded in 2000, we research and produce Lay flat frac hose, fire hose, rack hose, industrial hose, forestry hose, snow-making hose, irrigation hose, drag hose, potable water hose, No-dig pipe rehabilitation liner, TPR layflat hose, hose couplings, landing valves and other fire fighting equipments.
Lex-us Hose --- UL BS LR
Nitrile Rubber Covered Hose
Reinforcement: Polyester filament.
Cover and Tube: Nitrile/TPR blend tube, thin rib on cover provides better performance in abrasion resistance.
Application: Large diameter hose for water supply, Municipal, Industrial Fire Fighting, Premium Solution.
Standard Length:15m (50ft), 30m (100ft), 50m (165ft), 100m (330ft).
| ID | ID | Service Pressure | Minimum Burst Pressure |
| inch | mm | Psi/bar | Psi/bar |
| 1 1/4" | 32 | 200/14, 220/15, 250/17, 300/21, 400/28 | 600/42, 660/45, 750/51, 900/63, 1200/84 |
| 1 1/2" | 38 | 200/14, 220/15, 250/17, 300/21, 400/28 | 600/42, 660/45, 750/51, 900/63, 1200/84 |
| 1 3/4" | 45 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 2" | 50 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 2 1/2" | 65 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 2 3/4" | 70 | 200/14, 220/15, 250/17, 300/21 | 600/42, 660/45, 750/51, 900/63 |
| 3" | 75 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 4" | 102 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 4 1/2" | 115 | 150/10, 200/14, 220/15, 250/17 | 450/30, 600/42, 660/45, 750/51 |
| 5" | 127 | 120/8, 150/10, 200/14 | 360/24, 450/30, 600/42 |
| 5 1/2" | 140 | 120/8, 150/10, 200/14 | 360/24, 450/30, 600/42 |
| 6" | 154 | 120/8, 150/10, 200/14 | 360/24, 450/30, 600/42 |
| 7 1/4" | 184 | 120/8, 150/10 | 360/24, 450/30 |
| 8" | 204 | 120/8, 150/10 | 360/24, 450/30 |
| 10" | 254 | 120/8 | 360/24 |
| 12" | 306 | 120/8 | 360/24 |
