Henwi Small 5L Lab Emulsifier Mixer Face Cream Homogenizer Body Lotion Mixing Vessel Cosmetic Ointment Making Machine

Product Description

HENWI TECHNOLOGY
Manufacturer of Cosmetic | Pharmacuetical | Food | Daily Chemical industrial | GMP Standard Product Description 5l Lab Jacked Glass Lined Reactor Mixer High Shear Vacuum Homogenizer Emulsifying Mixing Machine

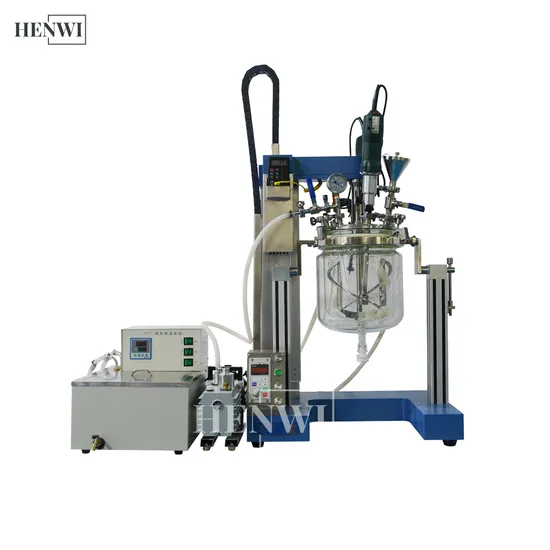

This laboratory vacuum mixer used for dispersion, mixing, emulsifying, homogenizing, Dissolve in the lab and making sample products.
1. In the condition of vacuum or pressure, we can see the whole processing of mixing, homogenizing, emulsifying of materials through the glass reactor.
2. For the capacity, we have 1L, 2L, 5L, 10L for your option.
3. This machine is an instrument developed by our engineers with latest German technologies, designed in modular structure, applies to blending, mixing, emulsifying, dispersing and homogenizing mobile liquids. This homogenizer can be widely applied in cosmetic cream, oil-water emulsion, polyreaction and nanophase material dispersion as well as special occasions requiring vacuum or pressure test. This equipment has the advantages of simple structure, small size, low noise, smooth operation, long service life, easy operation, easy cleaning, assembly and disassembly and maintenance.
Feature:
1.Double layers: heating through water or oil.
2.Glass reactor: We can see the whole processing of mixing, homogenizing, emulsifying of materials
3.Motor imported from Germany, continuously viable
4.Vacuum meter: In the condition of vacuum or pressure, we can get good emulsion product.
5.Whole bracket adopts SUS304, the contact material parts adopt SUS316L with GMP standrand
6.Glass Pot: Double glass layor, jacket for heating and cooling
7.Wall Scraper: Scraper blade, tetrafluoroethane material 8.Scraping off the materials that stick on pot wall, to make all materials mixing more evenly.
Product Parameters

Power	220V/50/60Hz
Stirring volume	5L
2Emulsification volume	5L
Max working temp	120 ° (optional high temperature)
Heating method	water bath, oil bath circulation
Vacuum condition	-0.096Mpa (positive pressure optional)
Viscosity max.	100000CP
Mixer power	220W
Mixer speed	0 ~ 200rpm (high speed optional)
Mixer agitator	Anchor scraper (optional spiral belt)
Scraper material	Silicone rubber (optional PTFE hard scraper)
Homogenizer power	750W
Homogenizer speed	10000 ~ 28000rpm
Speed display	LCD display (digital display timing)
Homogenizer head model	25BCS
Ultrasonic power	25KHZ
Ultrasonic probe diameter	Standard 20mm
Ultrasound capacity	1.5-5L
Openings on cover	Homogenizer opening, hopper opening, temp measurement opening, vacuum opening, ultrasound opening, 3 spare opening
Bracket lifting method	Electric auto lift (semi-auto cylinder lifting optional)
Lifting height	280mm
Medium-contact material	SUS316L stainless steel PTEF borosilicate glass
Reactor body material	borosilicate glass (SUS316L stainless steel container is optional)
Outer Dia. vacuum opening	10mm
Jacket inlet/outlet size	12mm
Wooden Dimensions	560 * 450 * 910mm
Weight	45KG

FAQ 1. Q: Are you a manufacturer or just a trading company? A: Foshan Henwi cosmetics machinery equipment company is one of the top technology-oriented machinery manufacturer in China. 2. Q: I am new in this field , can you recommend the whole production line? A: We can recommend you the whole production line depends on what products you will make: (1). If for paste or cream product, the following machine we will recommend you: RO water treatment equipment → Vacuum homogenizer → Storage tank → Paste filling machine or Heating mixing filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (2). If for liquid product, the following machine we will recommend you: RO water treatment equipment → Blending tank → Storage tank → Liquid filling machine → Capping machine → Labeling machine → Inkjet printer → Shrink film packing machine etc., (3). If for Perfume, the following machine we will recommend you: RO water treatment equipment → Perfume making machine → Perfume storage tank → Perfume filling machine → Perfume crimping machine → Perfume collar machine → Inkjet printer → Shrink film packing machine etc., (4). There are Full automatic production line and Semi automatic production line for your option.3. Q: What is your payment term? A: We usually pay by T/T., 40% deposit after sales confirmation, 60%before delivery.4. Q: What is your delivery day? A: Our delivery day is about 15-30 days after receive the deposit.
