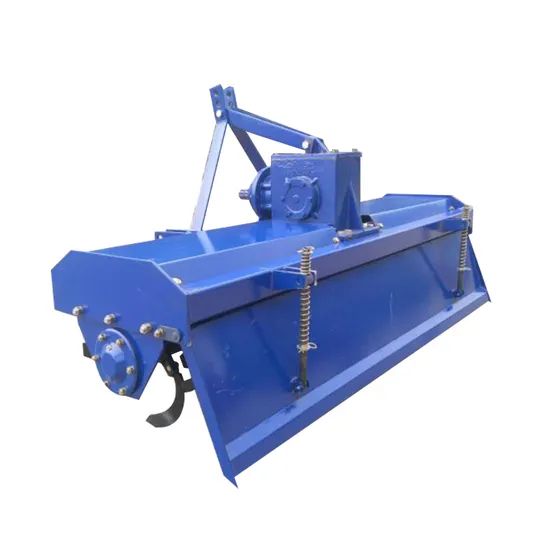

High Efficiency Farmland Mountain Heavy Duty Tiller for Tractor

Product Description

A rotary tiller, also known as a rotary tiller or a rotary tiller, is a farm implement used to cut, crush and mix soil and organic matter to create a seedbed for planting. It is an essential farm implement used primarily for seedbed preparation, soil aeration, weeding and mineralization. The rotary tiller has revolutionized the way farmers prepare soil, saving time and energy while producing healthier crops.
Working principle of a rotary tiller
A rotary tiller is a mechanical device that cuts and turns the soil by rotating a knife disc. When the rotating knife disc contacts the soil, its blades cut the soil, producing relatively fine soil clods. At the same time, the rotating knife disc lifts the soil upward and rotates it, ultimately achieving the purpose of turning the soil over.
Structural features of a rotary tiller
1. Transmission system: usually composed of a gasoline or diesel engine, a transmission shaft, a reducer, etc., to drive the rotary motion of the rotating knife disc.
2. Active cutting part: composed of a knife disc, a blade, a mounting plate, etc. The blade is fixed on a mounting plate mounted on the knife disc and rotates synchronously with the knife disc to achieve soil cutting.
3. Support system: physically divided into front and rear wheels, the front wheel can be adjusted in height.
4. Other components: such as operating handles, guardrails, rear swing arms, gears, etc.
Advantages of rotary tillers
1. Improve soil aeration: The rotary tiller can loosen the soil, increase the air content in the soil, improve soil aeration and air permeability, and is conducive to the growth of plant roots.
2. Improve soil structure: One of the capabilities of the rotary tiller is to break up the aggregates in the soil and prevent the organic matter burden from blocking the soil. This process also exposes the soil to the air, allowing it to empty parasite eggs and weed seeds.
3. Improve soil water utilization: The rotary tiller can better penetrate and distribute the water in the soil, which is conducive to the absorption and utilization of plant roots and improves the soil water utilization.
4. Increase crop yields: The rotary tiller can improve the fertility of the soil, increase the nutrient content, and is conducive to plant growth and yield increase.
5. Improve work efficiency: Rotary tillers can reduce the use of farmers' labor and improve the work efficiency of crop production.
Technical information

Model:	ZX-125	ZX-140	ZX-150	ZX-160	ZX-180	ZX-200	ZX-220	ZX-240
Power(HP):	40	50	40-45	40-45	50	50-60	60-80	80
working depth(cm):	125	140	150	160	180	200	220	240
working width (cm):	15	15	15	15	15	15	15	15
Number of blades(piece):	30	36	42	42	48	54	60	66
Size(mm):	1250*600*800	1400*600*800	1500*600*800	1600*600*800	1800*600*800	2000*600*800	2200*600*800	2400*600*800
Weight(kg):	296	310	326	338	368	396	426	450

Application scope of rotary tillers
Rotary tillers are mainly used for arable land, crop straw crushing, land reclamation, land preparation before sowing, and cultivation of crops such as corn, cotton, wheat, fruit trees, and vegetables. At present, rotary tillers have become essential mechanical equipment for rural families, cooperatives, and individual businesses in most areas.
How to choose a suitable rotary tiller
1. Land use method: Select the model according to the selected land use. For example, the rotary tiller selected for rice cultivation should have a stronger tillage depth and penetration performance.
2. Fertilization method: If the fertilization method of organic fertilizer is used, a deeper tillage depth and thicker and heavier machine head are required.
3. Output demand: If the required output is small, you can consider equipping a low-power rotary tiller; if you need a large cultivated area and a large daily output, you should choose a high-power rotary tiller.
4. Frequency of use: If the work intensity is relatively large and the frequency is high, you can consider choosing a rotary tiller with good quality and long life.
5. Price: When choosing a rotary tiller, you should not only consider the quality and efficacy, but also determine the price based on your economic strength and ability to pay.
Operation process of rotary tiller
1. Preparation: Check whether all parts of the rotary tiller are intact, install the rotary tiller, check the fuel tank, engine, blade, etc., to ensure that the parts are intact.
2. Start the engine: Start the rotary tiller by gently pulling. When the engine starts, stabilize the speed and gradually increase it to ensure the normal operation of the machine.
3. Adjust the depth: Adjust the depth by rotating the depth adjustment handle, and press the rotary tiller directly into the soil, and adjust the depth according to needs and actual conditions.
4. Start tilling: After starting actual tillage, you need to master the spatial direction of the farmland, so as to gradually reduce the half-cut and repeated places, thereby improving work efficiency.
5. End operation: During use, be careful not to turn off the engine at the starting point, otherwise, the large blade may be broken. After the operation is completed, turn off the engine and remove the rotary tiller from the farmland.
How do we ensure the quality of machine products?
1. Use high-quality raw materials to ensure the durability and reliability of the machine. We strictly control the quality and source of all raw materials.
2. Secondary inspection before sales to ensure that the quality of the machine meets the standard, so as to avoid quality disputes of engineering machines to the greatest extent.
3. Quality inspection is carried out on each machine to ensure that the machine is intact and all indicators meet the quality standards.
4. Adopt a perfect after-sales service system to provide customers with high-quality after-sales service. Once there is a problem with the machine, please contact us directly and we will deal with it immediately.
Advantages of our factory
Our factory uses advanced manufacturing technology and high-quality materials. We also have a team of well-trained skilled workers who are well-trained in the production process. In addition, we provide excellent after-sales support and fast delivery time to ensure that our customers are satisfied with our products.
