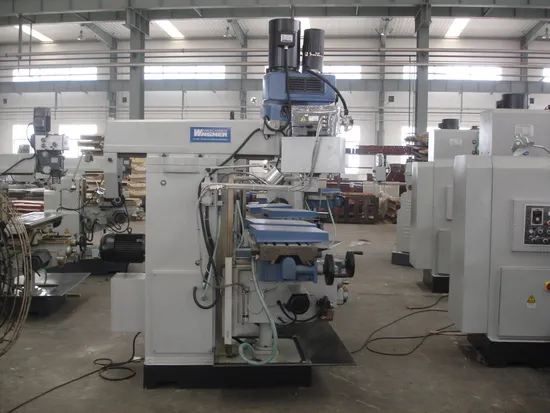

Multi-Function Gear Drive Vertical Milling/ Drilling and Milling Machine
| US$2,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZX6350C/ZX6350D
Type
Worktable Milling Machine
Object
Hardware
Structure
Lifts
Milling Cutter Type
Cylindrical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Transport Package
W/Case
Specification
1250X360
Trademark
Allway
Origin
China
HS Code
84592900
Production Capacity
1000PCS/Year
Product Description
The main performance characteristics:1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
ZX6350D :X/Y axis auto feed,Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:
| Specifications | Units | ZX6350C | ZX6350D |
| Table size | mm | 1120x280 | 1120x280 |
| T Slot number/width/pitch | mm | 5/14/50 | 5/14/50 |
| Longitudinal travel | mm | 630 | 630 |
| Cross travel | mm | 280 | 240 |
| Vertical travel | mm | 430 | 430 |
| Vertical milling capacity | mm | 32 | 32 |
| Face milling capacity | mm | 100 | 120 |
| Drilling capacity | mm | 50 | 50 |
| Longitudinal feeds range | Mm/min | 24-720 | 15.1-266.5 ,6steps |
| Cross feeds range | Mm/min | - | 15.1-266.5 ,6steps |
| Vertical milling spindle travel | mm | 120 | 120 |
| Spindle nose to table surface | mm | 140-570 | 100-530 |
| Travel of movable arm | mm | 360 | 360 |
| Vertical milling spindle taper | MT4 | MT4 | |
| Horizontal milling spindle taper | MT4 | MT4 | |
| Vertical milling spindle speeds | R/min | 115-1750 ,8 steps | 115-1750 ,8 steps |
| Horizontal milling spindle speeds | R/min | 32-1320 ,12 steps | 32-1320 ,12 steps |
| Vertical milling motor | kw | 1.5/0.85 | 1.5/0.85 |
| Main motor | kw | 2.0/2.4 | 2.0/2.4 |
| Overall dimensions | mm | 1400x1300x2100 | 1400x1300x2100 |
| Net weight | Kg | 1300 | 1300 |
