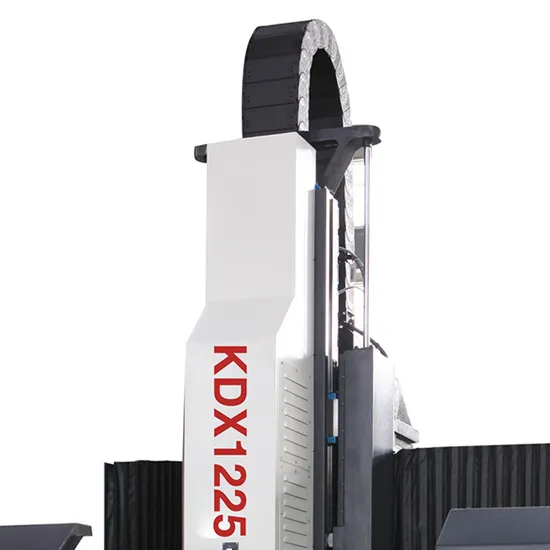

Machining Center Kdx1225 2500*1200mm Metal-Cutting Tools CNC Gantry Milling Machine
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDX1225
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
±0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
2500*1200mm
Granty Gate Width
1800mm
Max. Table Load
4000kg
X Travel
2500mm
Y Travel
1200mm
Z Travel
750mm
Transport Package
Export Wooden Case(Heat Treated)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
10 Sets/ Year
Product Description
ITEM | KDX1225 |
Table | |
Table size | 2500× 1200 mm |
Gantry gate width | 1800 mm |
Max table load | 4000 Kg |
Machining capacity | |
X travel | 2500mm |
Y travel | 1200 mm |
Z travel | 750 mm |
Distance between spindle end and table | 200-950 mm |
Spindle | |
Taper bore of spindle | BT50 |
Max. spindle speed | 6000 rpm |
Main motor power | 18.5/22 KW |
Feed | |
X/Y/Z motor torque | 22x2/22/22 Nm |
Feed rate | |
Rapid feed | |
X axis | 24 m /min |
Y axis | 20 m /min |
Z axis | 20 m /min |
Repositioning accuracy | |
X axis | ≤ 0.015 mm |
Y axis | ≤ 0.015 mm |
Z axis | ≤ 0.015 mm |
Others | |
Coolant pump motor power | 960 W |
Overall dimensions(LxWxH) | 4300x2930x3585 mm |
Net weight | 17000 Kg |
CNC brand | FANUC |
