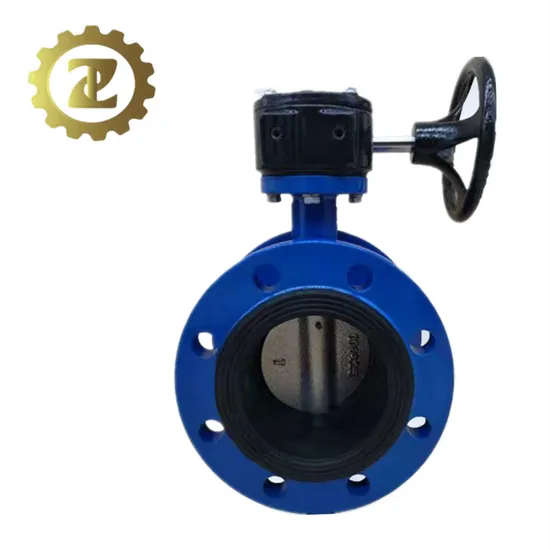

Zhv Industrial Marine DN300 Rubber Lined EPDM Lining Flange Butterfly Valve

Product Description

Gearbox Butterfly Valve Flange Connection Size:DN50-DN1200
Pressure:PN10/PN16,JIS 5K/10K,Class 150
Temperature:-30ºC - 135ºC
Body material:Cast Iron, Ductile Iron, Aluminum Stainless Steel,CF8,CF8M,CF3M
Applicable medium:Potable Water, Wastewater, Seawater, HVAC

Introduction Disc: Stainless Steel CF3M,CF3,CF8M, Nylon Coated Ductile Iron, Aluminum Bronze, Double Stainless Steel,2507,1.4529
Stem: 416 Stainless Steel,304 Stainless Steel,316 Stainless Steel
Seats: NBR,EPDM,PTFE,VITON, FKM* Polyurethane
Body style: Double Flanged
Features Sanitary & Chemical applications
One-piece disc/stem
High Cv, low pressure drop

Size DN(mm)	L	1.0MPa					1.6MPa
		D	D1	H	H1	Z-φd	D	D1	Z-φd
50	108	165	125	202	77	4-18	165	125	4-18
65	112	185	145	213	93	4-18	185	145	4-18
80	114	200	160	221	100	4-18	200	160	4-18
100	127	220	180	234	113	4-18	220	180	4-18
125	140	250	210	253	123	4-18	250	210	4-18
150	140	285	241	269	193	4-18	285	240	4-18
200	152	340	295	316	172	4-18	340	295	4-18
250	165	395	350	358	202	4-18	405	355	4-18
300	178	445	400	384	218	4-18	460	410	4-18
350	190	505	460	439	253	16-22	520	470	16-26
400	216	565	515	500	300	16-26	80	525	16-30
450	222	615	565	528	328	20-26	640	585	20-30
500	229	370	620	552	352	20-26	710	650	20-33
600	267	780	725	669	397	20-30	840	770	20-36
700	292	895	840	745	498	24-30	910	840	24-36
800	318	1015	950	803	571	24-33	1025	950	24-39
900	510	1115	1050	880	615	28-33
1000	550	1230	1160	935	705	28-36
1200	630	1455	1380	1067	827	32-39

Double Flange Butterfly Valve
1. Size: DN50-600,DN750.
2. Body: Cast iron/Ductile iron/Cast steel;
3. Disc: Ductile iron/Stainless steel/Aluminum Bronze
4. Seat: Nitrile rubber/ EPDM (Ethylene Propylene Diene Monomer)/ PTFE (Poly tetra fluoroethylene)/ Fluororubber
Nitrile rubber: Excellent oil resistance, high wear resistance, good heat resistance, strong adhesion.
EPDM: (1) Low price and high cost performance
(2) Excellent aging resistance. When used together with other unsaturated diene rubbers such as NR, SBR, BR, NBR, and CR, EPDM can act as a polymer antioxidant or anti-aging agent.
(3) Excellent chemical resistance, acid, alkali, detergent, etc.; polar oil resistance.
(5) Wide application temperature range
PTFE: Excellent chemical stability, corrosion resistance, sealing, high lubricity and non-stickiness and good resistance to aging. High temperature resistance, low temperature resistance. Corrosion resistance, inert to most chemicals and solvents, resistant to strong acids and bases, water and various organic solvents.
Fluororubber: High temperature resistance, oil resistance and chemical resistance
5. Available with handles, manual gear operators and electric/pneumatic/hydraulic actuators.

Flange connection size			Main material				Type of drive
JIS	DIN	ANSI	BODY	DISC	SEAT	STEM
5K	PN10	125LB	FC	FCD/DI	NBR	WCB	Lever Type	Worm Gear
10K	PN16	150LB	FCD/DI	SS	EPDM	SS	Center Handle	Electric Actuator
			SC/WCB	AL-Bronze	PTFE		Pneumatic Actuator	Hydraulic Actuator
					VITON
