Second Hand Plastic Round Flat Yarn Extruder Machine for Rope Making
Basic Info.
Model NO.
HDYSJ
Type
Fiber Extruder
Plastic Processed
PP
Product Type
Granulating Extruder
Feeding Mode
One Feed
Assembly Structure
Separate Type Extruder
Screw
Single-Screw
Engagement System
Full Intermeshing
Screw Channel Structure
Deep Screw
Exhaust
Don′t Exhaust
Automation
Non-Automatic
Computerized
Non-Computerized
Capacity
1000-3000kg
L/D
33
Fiber Dia
0.13-0.35mm
Rotation Speed of Screw
20-90r/Min
Drawing Ratio
4-10
Cooling Mode
Water Cooling
Screw Dia
70mm,80mm,90mm
Power
100kw
Machine Weight
10-15 Tons
Machine Dimension
20*3*2.5m
Function
Yarn Extruder
Advantage
High Quality
Installation
Yes
Mode
Hdysj
Yarn Type
Round Yarn
Transport Package
Container
Specification
27*2.2*3
Trademark
CNRM
Origin
China
HS Code
84772090
Production Capacity
High
Product Description
PP Yarn Plastic Filament Extruding MachinePP Yarn Plastic Filament Extruding Machine conceived to process polypropylene (PP) and high density polyethylene (HDPE).A remarkable versatile filament production line that perform all production process from plastic filament extruder to various winding system for widespread applications for agricultural, fishery.
| Name | PP Yarn Plastic Filament Extruding Machine | ||
| Item | HDYSJ-70*33 | HDYSJ-80*33 | HDYSJ-90*33 |
| Screw Diameter | 70mm | 80mm | 90mm |
| Fiber Diameter | 0.13-0.35mm | 0.13-0.35mm | 0.13-0.35mm |
| Fiber Type | PP/PE/HDPE Monofilament Yarn For Making Rope or Net | ||
| Ratio of L/D | 33 | 33 | 33 |
| Rotation Speed of Screw | 20-90r/min | 20-90r/min | 20-90r/min |
| Drawing Ratio | 4-10 | 4-10 | 4-10 |
| Cooling Mode | Water Cooling | Water Cooling | Water Cooling |
| Power Consumption | 100KW/65KW | 130KW/80KW | 150KW/100KW |
| Max Output capacity | 1200KG/24H | 2000KG/24H | 3000KG/24H |
| Machine Weight | 13 Tons | 15 Tons | 18 Tons |
| Machine Dimension(L*W*H) | 20*3*2.5M | 23*3*2.5M | 27*3*2.5M |
PP Yarn Plastic Filament Extruding Machine Key Features *The screw and barrel is manufactured from special nitrogen treated
*Precision ground and tempered steel
*High L/D ratio for higher output
*Cooling bath is constructed from stainless steel to prevent corrosion
*Take-off speed is powered by vs motor with adjustable speed for smooth whining and stretching performance
*Orientation device is especially designed to allow the filament to flow on water thus ensuring proper
*Filament roundness, uniformity and smoothness
*Different types of winder can be provided depends upon product and customer requirement
Detailed Images

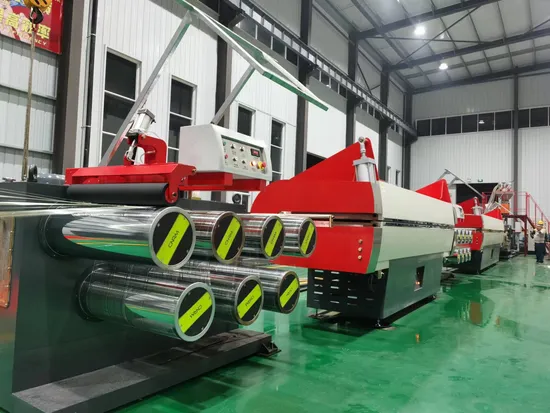

PP Yarn Plastic Filament Extruding Machine
Our Company
CNRM has achieved industrialization and large-scale production from the research and innovation with 10 years' experience in the rope and net machinery field. Our rope and net machinery mainly includes: extruder, ring twister, twisted rope making machine, braided rope machine, ball winder, spool winder, coiler machine, hank winding machine and package machine and more than 10 kinds series production; Our product performance has reached international and domestic advanced technology level with unique design concept, advanced manufacturing technology, perfect quality guarantee.
