Xpd-510bi High Performance Multi - Magnification Optical Instrument Stereo Microscopes

Product Description

XPD-510BI high performance Multi - magnification optical instrument Stereo Microscopes Product Description

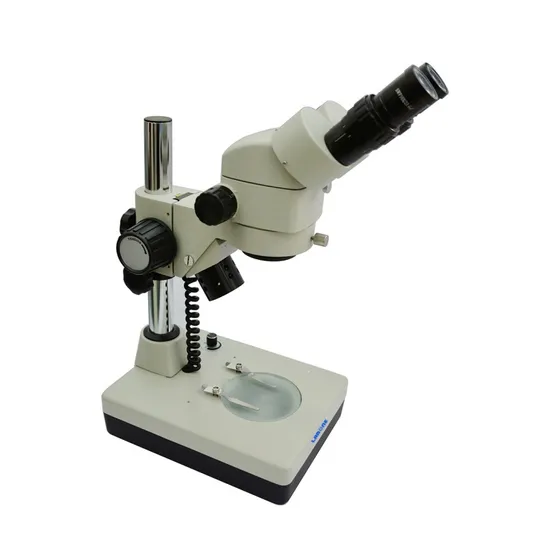

XPD-510BI Stereo Microscopes
Product description:
The XPD -510 is a high performance Multi - magnification optical instrument featuring five distinct magnifications and great flexibility in configuration choices . Its modular design allows for the attachment of a variety of imaging adapters , including CCD ,many professional digital still and digital video cameras . It employs the optical body as well as the imaging adapters of the XPZ system . It features the latest design in parallel optics and common objective lens , improving the depth of field , optical clarity , contrast , and dimensional quality of the specimen under examination . Its long working distance , excellent contrast , and super wide field of view characterize this instrument as superior its competitors . It also features a 48mm to 75mm interpupillary adjustment ; the largest range available in the industry . Mechanically the XPD -510 also excels , with a large comfortable base , precise and resilient ball bearing mechanical focusing , and superior ergonomics . These microscopes are used extensively world wide in medical research and health care , biology and botany research , agriculture , as well as electronic manufacturing . They are also particularly well suited in the inspection and production of IC polymer films and glass substrates , LCD printing pastes , LED production , fabric and fiber evaluation , electronics assembly , printed circuit board manufacturing , medical device inspection and all types of quality control environments
Product Parameters
Technical data

Project	Auxiliary Objective	Eyepiece									Working distance (mm)
		SWF10X			WF15X		WF20X		WF25X
		Magnifi-cation	Visual field		Magnifi-cation	Visual field	Magnifi-cation	Visual field	Magnifi-cation	Visual field
Data	0.3X	1.6X 3X 5.3X 9X 16.5X	139.4 76.6 43.6 25.6 14		25X 4.5X 7.9X 13.5X 24.7X	97 53.3 30.3 17.7 9.7	3.3X 6X 10.5X 18X 33X	78.6 43.3 24.6 14.3 8	4.1X 7.5X 13.1X 22.5X 41.2X	72.6 40 23 13.3 7.3	300
	0.5X	2.8X 5X 8.8X 15X 27.5X	93.6 46 26.3 15.3 8.4		4.1X 7.5X 13.1X 22.5X 41.3X	58.2 32 18.3 10.7 5.8	55X 10X 17.5X 30X 55X	47.3 26 14.9 8.7 4.7	6.9X 12.5X 21.9X 37.5X 68.8X	43.6 24 13.7 8 4.4	200
	1X	5.5X 10X 17.5X 30X 55X	41.8 23 13.1 7.7 4.2		8.3X 15X 26.3X 45X 82.5X	29.1 16 9.1 5.3 2.9	11X 20X 35X 60X 110X	23.6 13 7.4 4.3 2.4	13.8X 25X 43.8X 75X 137.5X	21.8 12 6.9 4 2.2	95
Main data
Objective zoom range				0.55X, 1X, 1.75X,3X, 5.5X
Eyepice				SWF10X/23mm
Working distance				95mm
Interpupillary distance adjustment range				48mm-75mm
Binocular head				inclination of 45.
Diopter adjustment				±5 diopter
Optical Body Rotation.				360.
Top halogen lamp				6V 15W adjustable brightness
Bottom fluorescent lamp				5w
