wholesale Philippines mareket EPDM membrane 215mm bubble diffuser

Product Description

Product Description

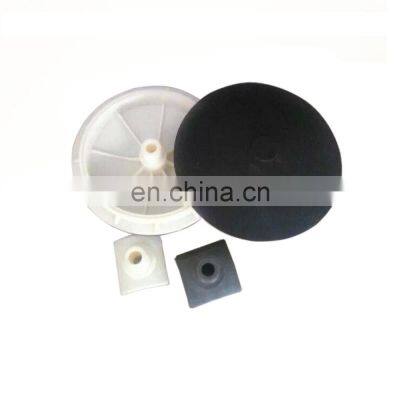

Product Descriptionwholesale Philippines mareket EPDM membrane 215mm bubble diffuserBubble diffuser, which is used to transfer air into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Bubble diffuser series combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes. Special designed for high oxygen transfer and long time operation.Item215mm Diameter260mm Diameter330mm DiameterService area0.15-0.6m20.25-0.8m20.4-1.3m2Air flow1-3.8 m³/h1.5-5.5 m³/h2.6-8.5 m³/hOxygen utilization27%-38%27%-38%27%-38%Resistance loss1700-2500 pa1600-2700 pa1500-3000 paTemperature0-80℃0-80℃0-80℃Membrane thickness2±0.1mm2±0.1mm2±0.1mmPerforation quantity4400660011000Perforation size1mm1mm1mmBubble size1-2mm1-2mm1-2mm1. Disc bubble diffuser EPDM membrane and ABS discABS saddle for bubble diffuserWe always use saddle to connect the bubble diffuser on the PVC pipe.2. Disc bubble diffuser EPDM membrane and PP discBubble diffuser feature:High oxygen transfer efficiency. High resistance to clogging.High resistance to corrosion.Wide air flow range.Low pressure loss.Low energy cost. Easy installation.Uniform fine bubbleBack flow prevention.Self cleaning operation.Intermittent operation capabilitySlide-off prevention designed.We have 3types bubble diffusers for your choose.Any question about them, I will be happy to give you offer.Bubble diffuser features1.High aeration effectivenessThe aeration process involves bringing together water and oxygen for oxidation and dissolutions of metals and dissolution of gases. With our fine bubble disc diffuser and fine bubble tube diffuser, it makes the process more effective.2.High oxygen transfer efficiency (OTE)Fine bubble diffusers generally work to treat water waste through OTE. However, with our products, it helps for a more enhanced process considering its specifications.3.Energy efficientFine bubble diffusers have long been introduced opposite the coarse diffusers. One of the feature of our product is its energy saving mechanism.That is, it needs lesser energy for it to work. In effect, you will benefit from energy conservation.4.System versatilityWe have fine bubble diffusers that suit to different water waste management systems. These diffusers are manufactured to ensure that it can adapt to different kinds of systems and basins that it yet to be made or are already existing.Thus, if you are replacing or upgrading, you can be catered.5.Material efficiencyOur diffusers are made from various material from ethylene propylene diene monomer rubber (EPDM rubber), which conventional material. We also have fEPDM that has high chemical resistance.Some are also of polytetrafluoroethylene or (PTFE) to reduce fouling.
