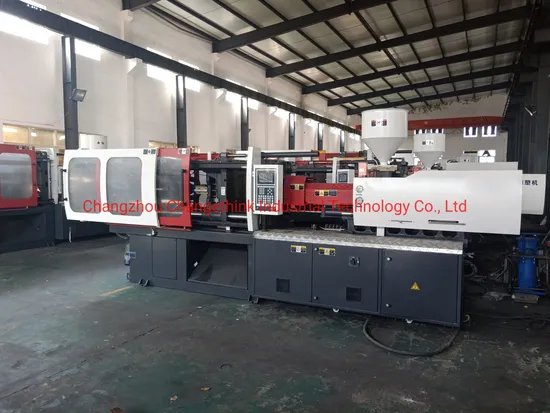

Lty-5000 Servo Type Plastic Injection Molding Machine
| US$75,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
LTY-5000
Type
Plastic Product Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic & Mechanical
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, GMP, QS
Transport Package
Wrap Film Packing Into The Container
Specification
500T
Trademark
LOYALTY
Origin
China
HS Code
8477101090
Production Capacity
1000sets/Years
Product Description
| SPECIFICATION | LTY5000-2 | ||||
| A | B | C | D | ||
| INJECTION UNIT | |||||
| SCREW DIAMETER | mm | 75 | 80 | 85 | 90 |
| SCREW L/D RATIO | L/D | 22.7 | 21 | 20 | 18.9 |
| SHOT VOLUME(THEORETICAL) | cm3 | 1727 | 1965 | 2218 | 2487 |
| INJECTION WEIGHT(PS) | g | 1560 | 1788 | 2018 | 2266 |
| INJECTION RATE | g/s | 386 | 442 | 499 | 560 |
| INJECTION PRESSURE | MPa | 191 | 168 | 148 | 132 |
| SCREW SPEED | rpm | 130 | |||
| CLAMPING UNIT | |||||
| CLAMP FORCE | KN | 5000 | |||
| OPEN STROKE | mm | 770 | |||
| SPACE BETWEEN TIE BARS(W*H) | mm | 830x830 | |||
| MAX.MOULD HEIGHT | mm | 810 | |||
| MIN.MOULD HEIGHT | mm | 330 | |||
| EJECTOR STROKE | mm | 240 | |||
| EJECTOR FORCE | KN | 150 | |||
| OTHER | |||||
| MAX.PUMP PRESSURE | MPa | 16 | |||
| PUMP MOTOR POWER | kW | 55 | |||
| HEATING POWER | kW | 31.4 | |||
| MACHINE DIMENSION(L*W*H) | m | 8.4x1.92 x 2.76 | |||
| OILTANK CUBAGE | L | 900 | |||
| MACHINE WEIGHT | t | 21 | |||
