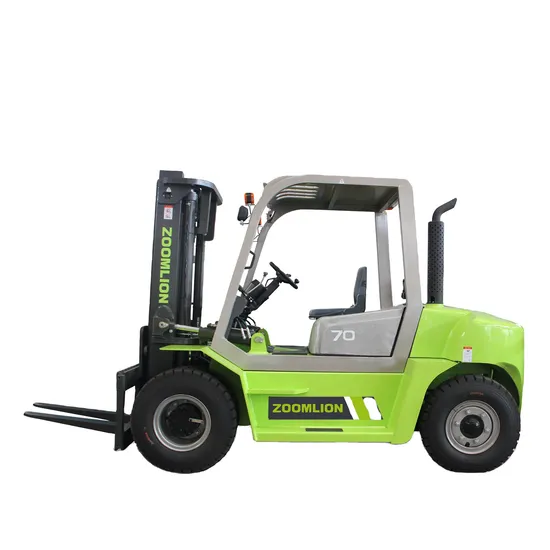

Zoomlion 5/6/7ton Diesel Forklift Fd50/60/70 Forklift with Spare Parts Cheap Price

Zoomlion 5/6/7ton Diesel Forklift Fd50/60/70 Forklift with Spare Parts Cheap Price

US$9,200.00-14,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
FD50/60/70
Cab Location
Not Adjustable
Type
Diesel Forklift
Power
Diesel Engine
Load Capacity
5T - 10T
Fuel
Diesel
Load center
500mm
Lift height
3000~5000mm
Condition
New
Rated Capacity
5000kg
Center of Load
600j(mm)
Lifting Height
3000h1(mm)
Free Lifting Height
203(mm)
Min.Ground Clearance(Mast)
200m(mm)
Overhead Guard Height
2460h4(mm)
Wheelbase
22502(mm)
Fuel Tank
140L
Transmission
1/1 Automatic Transmission
Working Pressure
20MPa
Transport Package
Container
Specification
4626*2000*2500mm
Trademark
Zoomlion
Origin
Hunan, China
HS Code
8427109000
Production Capacity
10000 Units/Year

Product Description

Zoomlion 5/6/7ton Diesel Forklift Fd50/60/70 Forklift with Spare Parts Cheap Price Product Description Zoomlion Brand New Diesel Forklift
• Engine is with large torque and capacity, which is powerful and can meet different operation demands;
• Lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiently;
• Hydraulic system is equipped with the throttling valve, which makes operation safe and reliable;
• Reinforced mast with wide view design improves efficiency and safety meanwhile enhances anti-force capacity.
• The forklifts are nice in appearance with streamline design. They work stably with high efficiency and good grade ability and can be operated in bad working conditions.
Comfort & Efficient
• Integrated overhead guard is adopted. The canopy is one time stamping part with 5 pieces transparent plastic cover, which receives sufficient light and keeps rain out;
• Big power engine in V type installation can reduce the vibration;
• Scientific ergonomic design makes operation more portable and comfortable. Seat and backrest are adjustable. Steering wheel tilt angle is also adjustable, which leaves more legroom. The portable gearshift is quick to shift and easy to operate.
Product Parameters
Specifications unit FD50 FD60 FD70
Characteristics Power diesel diesel diesel
Rated Capacity kg 5000 6000 7000
Center of load mm 600 600 600
Lifting height mm 3000 3000 3000
Free lifting height mm 203 208 218
Forks L×W×H mm 1220×150×55 1220×150×60 1220×150×70
Tilt Forward/Backward . 6/12 6/12 6/12
Min.turning radius mm 3250 3370 3370
Min.ground clearance(Mast) mm 200 200 200
Overhead guard height mm 2460 2460 2460
Height from seat to overhead guard mm 1050 1050 1050
Front overhang mm 610 615 625
Perf Max.traveling speed(loaded) km/h 26 26 26
Max.lifting speed(loaded/empty) mm/s 370/450 370/450 370/450
Drawbar pull/Gradeability kN/% 51.4/20 51.4/20 51.4/20
Dimensions Overall length (without fork) mm 3431 3431 3466
Overall width mm 2235 2235 2235
Mast lowered height mm 2500 2500 2500
Mast extended height mm 4417 4417 4417
Chassis Tire Front 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Rear 8.25-15-14PR 8.25-15-14PR 8.25-15-14PR
Wheelbase mm 2250 2250 2250
Tread width Front/Rear mm 1470/1700 1470/1700 1470/1700
Curb weight None-load kg 7980 8640 9340
Powertrain Battery Voltage/Capacity V/Ah (12/90)x2 (12/90)x2 (12/90)x2
Engine Model CY6102BG6 CY6102BG6 CY6102BG6
Rated power kw/r.p.m 81/2500 81/2500 81/2500
Rated torque Nm/r.p.m 353/1700 353/1700 353/1700
Cylinder amount 6 6 6
Bore×Stroke mm 102×118 102×118 102×118
Displacement 5.785 5.785 5.785
Fuel tank L 140 140 140
Transmission 1/1 automatic transmission
Working pressure MPa 20 20 20
