Universal Milling Machine/Vertial Milling Machine XL6230

Product Description

Product Description

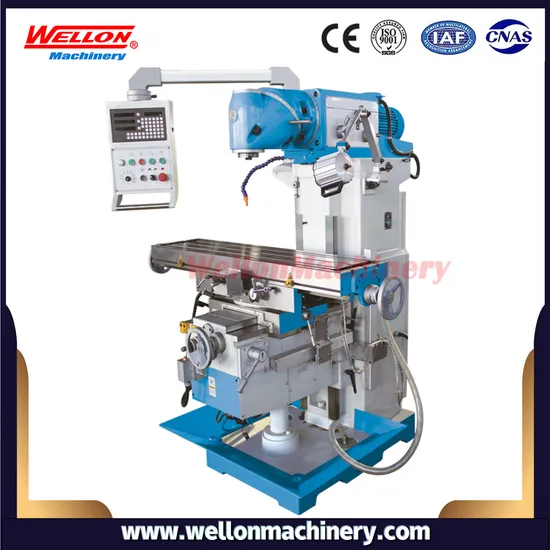

Universal Milling Machine/Vertical Milling Machine XL6230
Detailed Photos
Product Parameters

Feature:
1.This milling machine with universal milling head which can swivel 360 degress.
2.Optional rotary table 45°, Multi-angle processing.
3.Table 3 axes are controlled by one servo motor, toque large, energy efficiency, safe and reliable.
4.Hardened on x, y, z axis,rectangular guideway, stable, good rigidity.

Technical parameter:

Specifications	Unit	XL6230
Table size	mm	1270*300
T-slots(NO./width/pitch)	mm	3*14*80
mmMax table travel - X/Y/Z	mm	720/300/400
Spindle taper	-	7:24 ISO40
Distance between spindle nose and table	mm	100-500
Spindle speed range	r.p.m	11 steps 45-1660
Max swivel angle of milling head	-	360
Table feed(X/Y/Z)	mm/min	XY:30-830 Z:23-625
Table rapid speed		1335/1335/1000
Main motor power	Kw	3
Torque of X/Y/Z axis AC servo motor	Nm	10
Overall size	mm	1730*1760*1700

Standard accessories:

Draw bar

Mill arbors

Coolant device

Coolant tray

Universal mill head

Automatic central lubrication

Tools

Optional accessories:

3-axis digital readout

Swivel worktable

Machine vice 200mm

Horizontal & vertical rotary table 320mm

Universal dividing head F11-160A

Clamping kit set 58-pcs
