Transmission Gearbox Reduction 42 57 86 Stepper Motor Planetary Gearbox Reducer 60 80 Servo Motor Speed Reducers

Product Description

Transmission Gearbox Reduction 42 57 86 Stepper Motor Planetary Gearbox Reducer 60 80 Servo Motor Speed Reducers
Features 1. Using involute gear transmission, alloy steel with carbonizing & quencher heat treatment, the precision level of gear, and grinding could reach ISO class 5, and the profile and axial modification could enhance the bearing capacity, stability of mesh, and low noise.
2. With integral output shaft and bearing support for both sides of the planet wheel, realizing higher precision and higher rigidity.
3. Small backlash, the accurate single stage can reach within 3 arcmin's as clients request.
4. Gyration parts of the input side with dynamic balance treatment can make sure the gearbox running steadily at high speed.
5. It can combine with any servo motor, can be designed for special combinations, and is easy to mount.(It can be specially designed to accept any type of servo motor, mounting is convenient)
6. Simple for maintenance, it doesn't need to change the oil(grease) during the service life.

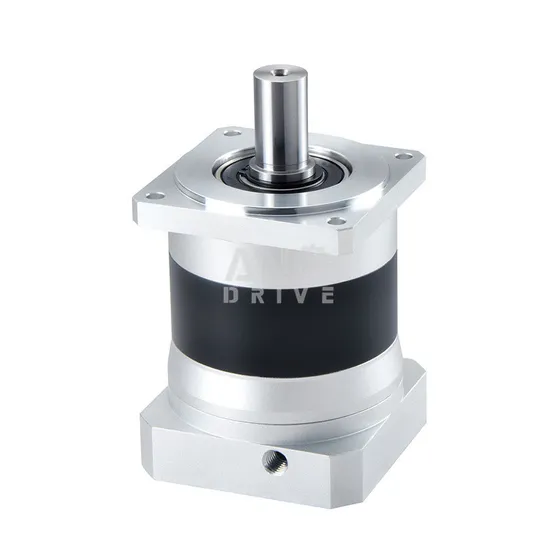

Product Photos
Product Description

ANG Precision Planetary Gearbox
Model	40-220	Type	Coaxial or Right angle
Ratio	1/3 ~ 1/512	Torque	40-3000Nm
Efficiency	98%	Input/Output shaft material	40Cr
Housing material	42CrMo	Machining precision of gears	6 Grade
Gear material	20CrMnTi	Lubricating oil	Synthetic Grease
Surface hardness of gears	HRC58-62	Heat treatment	Carbonize & quencher
Brand of bearings	C&U, HRB	Vibration	≤15μm
Brand of oil seal	SKF	Oil Temp. rise (MAX)	40ºC
Noise (MAX)	55-70 dB	Noise (MAX)	70º

Related Products
FAQ
Q: Can you make the gearbox with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, flange, terminal box, IP grade, etc.
Q: Do you provide samples?
A: Yes. A sample is available for testing.
Q: What is your MOQ?
A: It is 1pcs for the beginning of our business.
Q: What's your lead time?
A: Standard products need 5-30 days, a bit longer for customized products.
Q: Do you provide technical support?
A: Yes. Our company has a design and development team, and we can provide technical support if you
need.
Q: How to ship to us?
A: It is available by air, by sea, or by train.
Q: How to pay the money?
A: T/T and L/C are preferred, with different currencies, including USD, EUR, RMB, etc.
Q: How can I know if the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send an inquiry directly, and we will respond within 24 hours.
