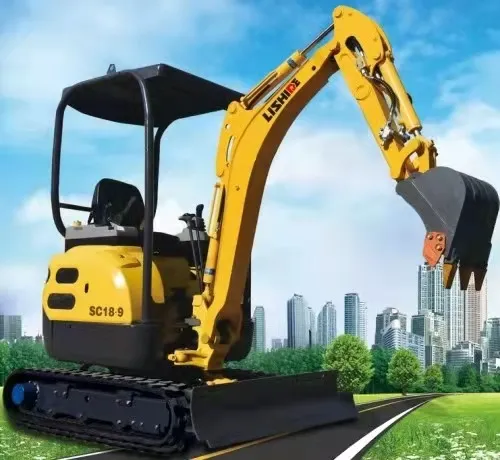

LISHIDE SC18.9 Hydraulic Crawler Wheel Backhoe Micro Household Farm Construction Mini Digger

Product Description

Model	SC18.9(YANMAR)
Weight:(T)	1.75
Bucket capacity:(m3)	0.04
Engine type:	3TNV70
power(kw/r/min)	10.3
Fuel tank capacity:(L)	18
walking spee(high/low):(km/h)	4.9/2.5
Rotary speed:(r/min)	11.8
climbing ability:(%)	30
Digging force: (KN) ISO	18.8
Arm digging force :(KN) ISO
Ground pressure:(KPa)	30.5
Traction:(kN)	16.8
Hydraulic pump Model	MVP30.20D
Max flow:(L/min)	48
Working pressure:(MPa)	24.5
Tank capacity:(L)	18
A-Overall length(mm)	3432
B-Overall width(mm)	1064
C-Overall height(boom top)(mm)	1172
D-Overall height(cab top):(mm)	2376
E-Counterweight ground clearance:(mm)	433
F-Min ground clearance(mm)	158
G-Tail return radius(mm)	676
H-Track ground length(mm)	1261
J-Track length(mm)	1622
K-Track Gauge(mm)	760
L-Track width(mm)	990/1240(max)
M-Track shoe width(mm)	230
N-width of the turntable(mm)	1064
O-Max digging height(mm)	3441
P- Max dump height(mm)	2368
Q-Max digging depth(mm)	2379
R-Max digging depth of vertical wall(mm)	1716
Max excavation distance(mm)	3901
U-Max digging distance in the ground plane(mm)	3840
V-Min radius(mm)	1517
X-the distance from the center of of rotation to the back end(mm)	676
Y-Caterpillar tooth Thickness (mm)	16
Z- Height of balancing (mm)	1149
A1-Length ground when transported(mm)	2415
Arm length(mm)	950
Boom length(mm)	1830
A3-(mm)Max lifting height of bulldozer	230
A4-(mm) Max depth of bulldozer	156

Packaging Details
barely pack
Port
qingdao,tianjin
Lead Time:

Quantity(Sets)	1 - 5	>5
Est. Time(days)	20	To be negotiated

the excavator fitted with YANMAR 3TNV70,10.3 KW, and CASAPPA pump , WOLFFU valve and TIANQI swing motor and NACHI traveling motor.

Brand	LISHIDE
Model	SC18.9
Max digging height	3441
Max digging depth	2379
Max digging radius	3840

Certifications
Lishide Construction Machinery Co., Ltd. is a provincial and national green enterprise, it has passed dual system certification of ISO9001 quality and ISO4001 environment. As well our company has obtained dual certification of ISO45001 occupational health and ISO50001 energy manageme.

Company Profile
Lishide Construction Machinery Co., Ltd is one of the subsidiaries of Shandong Changlin Machinery Group.
Lishide company independently develops and produces a full range of excavators from 1 ton to 80 tons, which has won the unanimous praise of customers for its stable, reliable, energy-saving and efficient product characteristics.
Lishide company has many years experience in construction machinery industry of senior management leadership and team, gathered a group of core technical expert team with many years of experience in product development and manufacturing of construction machinery industry, With mature technology and management experience in product research and development, manufacturing and operation management, the core technology of product research and development of the company adopts the international advanced technology platform, to achieve a high starting point, high positioning, and keep pace with the international advanced technology. The company undertakes a number of national and Shandong province research and development projects, and has obtained more than 40 national patents.
