Application: The DL12 cables are designed for digital signal transmission according to the DMX and AES-EBU standards.

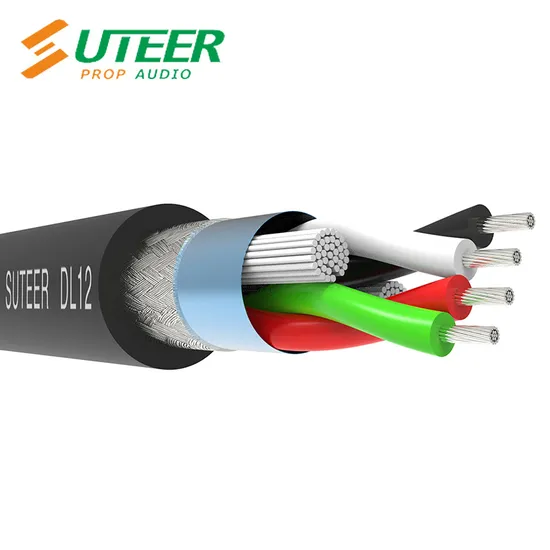

It is a cable for digital signal transmission with a characteristic impedance of 110 Ohm, consisting of four conductors with a section of 0.23 mm². They are both surrounded with an Aluminum foil PET and braiding, ensuring the best shielding of the cable, resulting in an excellent protection against interference of all kinds of electromagnetic fields, produced by dimmers, electric motors, power cables and many other electromagnetic interference sources.
Features: 2 x 0.22 mm² (24 AWG) Stranded Oxygen-free copper AL/PET Foil and ultra-high density braided shielding Ultra flexible PVC outer jacket 110 Ω characteristic impedance 8.0 mm (Ø) outer diameter Specifications:

Cable model	DL10	DL11	DL12
Type of cable	110 Ω DMX Cable	110 Ω DMX Cable	110 Ω DMX Cable
Conductor material	Bare stranded copper	Bare stranded copper	Bare stranded copper
Structure of conductor	20 x 0.12mm	20 x 0.12mm	20 x 0.12mm
Conductor section	0.23 mm2	0.23 mm2	0.23 mm2
American wire gauge	24 AWG	24 AWG	24 AWG
Insulation material	PVC	PVC	PVC
Insulation color	Red / Blue	Red / Blue	Red / Blue / Black / Green
Number of cores	2	2	4
Filler	No	Cotton yarn	Cotton yarn
Shielding 1	AL/PET Foil	AL/PET Foil	AL/PET Foil
Shielding 2	7 x 0.15mm TC Drain wire	16 x 6 x 0.12mm TC Braided	16 x 8 x 0.12mm TC Braided
Outer Jacket	PVC, Black	PVC, Black	PVC, Black
Outer Jacket O.D	Ø4.0	Ø6.0	Ø8.0
Electrical characteristics
Conductor resistance-1000M	≤ 79 ohm	≤ 79 ohm	≤ 79 ohm
Characteristic impedance	110 Ω	110 Ω	110 Ω
Capacity (C/C) @ 1kHz	60 pF/m	48 pF/m	48 pF/m
Mechanical characteristics
Temperature range	fixed installation		-40 °C to +80 °C
	flexible installation		-20 °C to +60 °C
Bending radius	fixed installation		6 x outer diameter
	flexible installation		8 x outer diameter
