Atc, Victor, Circuit Breaker for Boat Car RV EV Truck (E7 Series)

Product Description

Overcurrent circuit breakers, is the use of bimetal structures, when the automotive circuits overload, rapidly power protection, users can be reset manually switched on again, MINI type push-terminals design, and can replace a blown fuse disposable function, widely used in car modification and maintenance market.

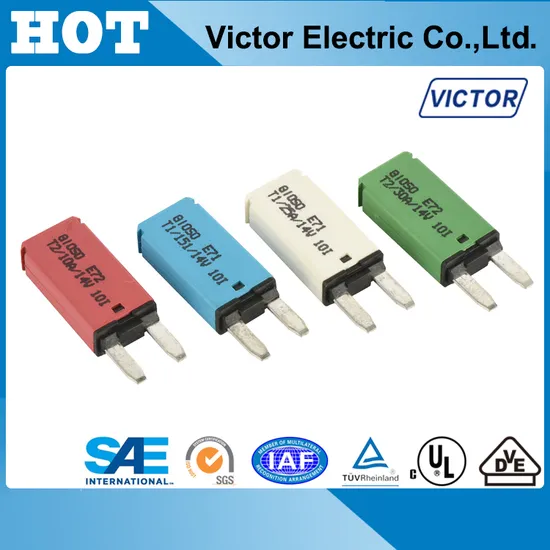

Cross to Bussmann 19X, MINI CIRCUIT BREAKERS
Plasic cover with a coler code, E71(T1), E72(T2), E73(T3)
Aluminum cover with a laser code, E77(T1), E78(T2), E79(T3)

Rating: 5-30A, 14Vdc
Interrupt Rating: 150A@14Vdc (for 8-10A)
225A@14Vdc (for 15A)
300A@14Vdc (for 20A)
450A@14Vdc (for 25, 30A)
Operating Tempeature rating: -40ºF(-40ºC) to 185ºF(85ºC)
Stortage Temperature rating: -40ºF(-40ºC) to 260ºF(125ºC)
Marking: Type/ Amp/ Voltage
Termination: Compatible with 280 Type fuse blocks using 0.32in (8.1mm) centerlinew spacing
Compliance: SAE J553

Normal conditions: Lead time: 1-2 weeks for normal products; Shipping: 1)Express as DHL/UPS/TNT/Fedex; 2) Airfreight; 3) Vessel shipping; Certification: CE/ROHS certified; Design capability: CAD/UG (2D & 3D drawing); OEM products: yes; Aftersales service: response within 48 hours; Sample orders: be free for 1-2 pieces but buyer should pay the delivery charge; Package: could be customized;
Product features
1. Car charger+Voltmeter+Ammeter+Car cigarette lighter+Power socket, 5 in 1.
2. Double USB socket supports a variety of electronic devices.
3. Passed CE certification.
4 With waterproof cover, it has good dustproof and waterproof effect.
5 High current, high temperature and wear resistance.
6.USB ports have orange / blue /green /red color LED indicator light.
7 With high stability IC, It can prevent over temperature, over current, over load, and short circuit.
