LV Series Vertical CNC Lathe Turning Center Fixed Column Type Double-Coordinate Two-Axis Linkage Vertical CNC Machine Tool LV63A

Product Description

Product Description

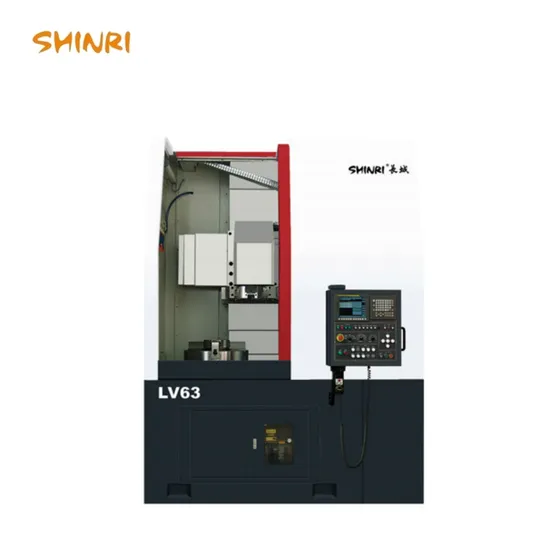

LV series vertical CNC lathe is a fixed column type double coordinate two axis linkage vertical CNC machine tool. The machine tool is a mechanical and electrical integration product, and its base column and other parts are made of high-performance resin sand cast iron. The guideway surface is finely ground after hardening treatment, and the moving surface of the guideway is attached with a plastic guideway plate, which has small friction coefficient, good vibration absorption performance and high contact rigidity; Good chip removal performance, tight waterproof, easy to operate; It embodies the design idea of modularity, high performance and high stability.
Machine tool characteristics
1. The machine tool host adopts fixed column base, and its rectangular guide rail with large section can give full play to the advantages of high rigidity and large processing range;
2. The spindle unit adopts the high-rigidity sleeve structure, and the bearing adopts the combination form of high-precision double-row angular contact ball bearing and cylindrical roller bearing, which can meet the axial and radial force requirements to the maximum extent;
3. high precision ball screw. Ball screw prestretch installation, good rigidity, high precision;
4. fully enclosed protection, built-in sliding door, excellent waterproof performance, beautiful appearance, the door adopts linear rolling bearing, open freely, flexible and convenient, and interlock with the spindle, safe and reliable;
Product Parameters
Company Profile
SHINRI CNC Machinery Group is consisted of Jiangsu Shinri Heavy lndustry Science &Technology Co., Ltd, Jiangsu Shinri Gear Systems Co., Ltd Ningxia Shinri Changcheng Machinery Co., Ltd, Ningxia Shinri Changcheng Casting Company Co., Ltd. Lt is subordinate to the New United Group. Shinri products covered three time-honored brands, respectively Shinri, Changcheng and Duoleng and 12 different products series. So far Shinri becomes one of the biggest machine tool manufacturers covering nearly alltypes of machines in China.
By embracing new, high and outstanding technology, Shinri opens his hands to escalate his customers from their traditional applications and gives optimized solutions. The two R&D centers and manufactory bases, in Changzhou and Yinchuan, have totalarea of premises of 700 thousands m and 300 thousands m modernized plants. We introduced a good number of high precision mother machines from world first class makers and the yearly machine production reaches to 3500 pieces or more. In Yinchuan city, by invested 600 mllion RMB, the first phase of construction of foundry plant has established with yearly capacity 40 thousand tons With strong financial, intelligent and technical supports, the company is gigantic in R&D and manufactory.
Its products list covers VMC, HMC, CNC lathe, gantry boring milling/machining center/5 faces/5-axis synchronous, floor type boring milling/machining center, end facing & centering machine, drilling machine, FMC, FMS, Railway gear box, Wind power gear box and industrial gear box etc. The products are broadly applicable to aerospace, automobile, shipbuilding, electronic appliance, new energies sources, railway traffic, engineering mechanic, petro chemistry, die tooling and vocational education...etc.
As a national enterprise endowed with the mission of rejuvenating Chinese traditional industry, Shinri will follow the concept ofputing people first, making innovations & building a future of excellence. Work under the guiding principle of providing the highquality products & best service for customers in order to become the most competifive CNC machine tool manufacturer & bestsolution provider at home & abroad.
