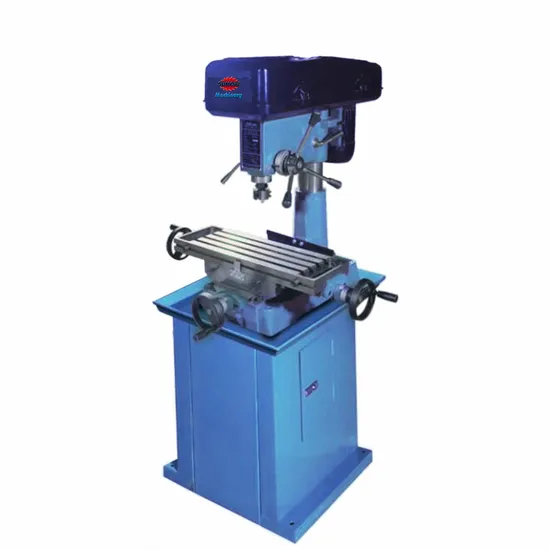

Worktable Artificial Sumore China Universal Precision Benchtop Mini Milling Machine with Good Service
| US$664.00 | 1 set (MOQ) |
Basic Info.
Model NO.
SP7016
Object
Gear
Structure
Desktop
Milling Cutter Type
End Mill
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
CE
Condition
New
Max.Drilling Capacity
16mm
Width of Face Milling
50mm
Diameter of Vertical Milling
12mm
Spindle Travel
115mm
Spindle Taper
Mt.2
Spindle Speed Range
235/2050rpm
Spindle Speeds
5
Table Size
585*195mm
Travel of Worktable
330*175mm
Overall Height
1040mm
Headstock Travel
350mm
Motor
550W
G.W./N.W.
200/160kg
Packing Size
730*920*1050mm
Transport Package
Wooden Box
Trademark
SUMORE
Origin
China
HS Code
8459619000
Production Capacity
1000set
Product Description
Product DescriptionSUMORE 16mm vertical drill mill machine SP7016 fresadora universal drilling and milling machine SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal. Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine
Features/Advantages
Tapping Function
Brushless Motor & Variable Spindle Speed
Fine & Smooth Feeding Movement on Every Directions
High Precision for Model Engineering
Changable Table Length for Different Workpieces
Optional Table Auto Feed
Rigid cast iron construction with dovetailed slideways
Easy function change makes a versatile machine
Perfect for slotting, grooving, splines and gear cutting
Product Parameters
| Model: | SP7016 | SP7020 | SP7025 | SP7032 | SP7040 | SP7045 |
| Max.drilling capacity: | 16mm | 20mm | 25mm | 32mm | 40mm | 45mm |
| Width of face milling: | 50mm | 50mm | 63mm | 80mm | 80mm | 80mm |
| Diameter of vertical milling: | 12mm | 12mm | 13mm | 22mm | 28mm | 28mm |
| Spindle travel: | 115mm | 115mm | 90mm | 130mm | 120mm | 120mm |
| Distance spindle axis to column surface: | 240mm | 240mm | 202mm | 202mm | 260mm | 260mm |
| Max. distance spindle nose to worktable: | 440mm | 440mm | 380mm | 450mm | 450mm | 475mm |
| Spindle taper: | MT.2 | MT.2 | MT.3 | MT.3 or R8 | MT.3 or R8 | MT.4 |
| Spindle speed range: | 235~2050RPM | 185~2400RPM | 100~2150RPM | 100~2150RPM | 95~1600RPM | 95~1600RPM |
| Spindle speeds: | 5 | 12 | 12 | 12 | 6 | 6 |
| Table Size: | 585×195mm | 585×195mm | 585×195mm | 730×210mm | 730×210mm | 820×240mm |
| Travel of worktable: | 330×175mm | 330×175mm | 330×145mm | 500×175mm | 500×175mm | 550×200mm |
| Overall height: | 1040mm | 1040mm | 930mm | 1100mm | 1110mm | 1040mm |
| Headstock travel: | 350mm | 350mm | 300mm | 315mm | 350mm | 410mm |
| Motor: | 550W | 750W | 750W | 1500W | 750W | 750W |
| G.W./N.W.: | 200/160KG | 200/160KG | 260/220KG | 330/285KG | 340/275KG | 340/270KG |
| Packing Size: | 730×920×1050mm | 730×920×1050mm | 760×850×1050mm | 845×745×1150mm | 870×770×1130mm | 870×770×1130mm |
| Quantity for 20GP | 36PCS | 36PCS | 36PCS | 36PCS | 36PCS | 36PCS |
Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
