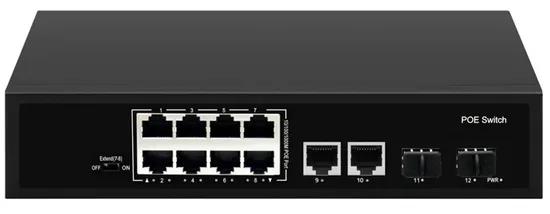

Poe Switch Full Gigabit 8+2+2SFP: Full Gigabit Unmanaged 8 +2 Uplink Port+2 SFP Network Poe Switch 8 Port 2 Uplink Port 2 SFP WLAN Transmission for CCTV Camera
| US$26.50-29.50 | 10 Pieces (MOQ) |
Basic Info.
Model NO.
HN8G2G2S-96
Transmission Rate
100Mbps
Ports
12
Transport Package
1
Specification
220*161*44 mm
Trademark
OEM
Origin
China
Production Capacity
500000PCS/Year
Product Description
Main Features: Product Description: Full Gigabit 8+2+2SFP PoE Port: 8 Ports 10/100/1000Mbps Uplink Port: 2 Gigabit & 2 SFP Ports PoE Transmission Distance: 0-100m/250m (Port 7-8/Selected by switch) Built-in Power Supply: yes Watt: 96Watt Input: 100-240VAC 50/60Hz VLAN: yes Watchdog: yes Datasheet| Model | HN8G2G2S-96 |
| Product | PoE Switch |
| Ports | |
| Port: | 12 |
| PoE Port: | 8, 1000Mbps; RJ45 ports; Max. 30W Output of Single PoE Port |
| Uplink Port: | 2*1000Mbps RJ45 ports + 2*1000Mbps SFP ports; Transmission Distance: Defaulf: 0-100m |
| PWR (Power supply Indicator) | Light on: Powering |
| Light off: No Power | |
| RJ-45 ACT indicator | Green light off: Link is disconnected |
| Green light on: Link is connected | |
| Green light flash: Data Transmitting | |
| Standard | |
| Network Protocol: | IEEE802.3i/802.3u/802.3x/802.3af/802.3ab/ IEEE 802.3z |
| Performance | |
| Switching Capacity: | 24Gbps Full duplex |
| Packet Forwarding Rate: | 1.488Mpps/port |
| Forwarding Mode: | Store-and-forward |
| MAC Address Table: | 2K |
| Watchdog | Support |
| Power Over Ethernet | |
| PoE Standard: | IEEE802.3af, IEEE802.3at |
| PoE Power Supply | 1/2(+),3/6(-) |
| Transmission Distance: | 0-100m/1000Mbps or Port 7-8 Max. 250m/10Mbps via Cat.5e or more under Extend mode |
| PoE Feature | All ports support MDI/MDIX |
| General | |
| Power Source: | Bult-in Power Supply |
| Input: 100-240V AC, 50/60Hz | |
| PoE Power Budget: | 96W |
| Power Consumption: | <5W |
| ESD | Air discharge: 8KV |
| Contact discharge: 6KV | |
| Surge Protection | Common mode/RJ45 port: 4KV |
| Differential mode/RJ45 port: 2KV | |
| Common mode/Power board: 2KV | |
| Differential mode/Power board: 2KV | |
| Working Temperature: | -10ºC-50ºC |
| Humidity: | 10%-95% , non-condensing |
| Storage Temperature: | -40ºC-70ºC |
| Color | Black |
| Weight: | 0.95 kg(not include input cable & packaging) |
| Dimension(L×W×H): | 220*161*44 mm |
