Heavy Duty Bed Type Universal Milling Machine (X715)

Product Description

Product Description
Features:
Rigid grey cast-iron construction allows heavy work load
Universal milling head system "Huron" can be adjusted to various angles
Solid flat guiding guarantees stability at heavy milling
Complete with swivel arm and clearly arranged control panel
Inductive hardened and polished guidings
Stepless feed adjustments in all axis
Reinforced saddle in robust box construction
Precisely polished table, ideally positioned on wide saddle
Column and stand in solid box construction

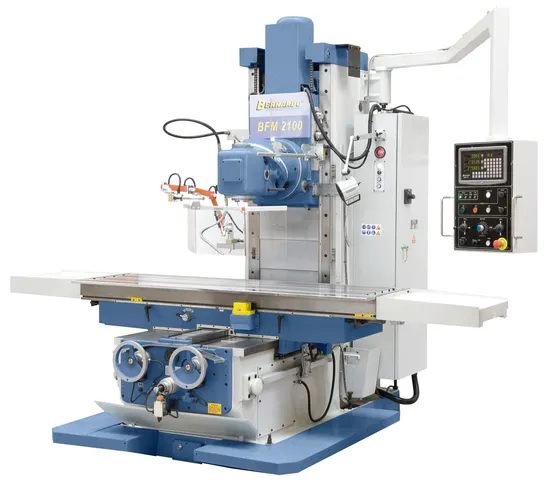

swivel milling head heavy duty bed type universal milling machine (X715)
Product Parameters
Specification of our universal milling machine:

TECHNISCHE	X715
Table size	2100 x 500 mm
Spindle taper	ISO 50
Spindle speed	(12) 40 - 1600 rpm
Travel longitudinal (x)	1500 mm
Trave cross (y)	700 mm
Trave vertical (z)	700 mm
Distance spindle to column	610 mm
Spindle head tilting range	360°
Distance spindle to table	0 - 700 mm
Feeding speeds	/
x-axis (stepless)	20 - 1800 mm/min
y-axis (stepless)	20 - 1800 mm/min
z-axis (stepless)	10 - 900 mm/min
Rapid feed x- and y-axis	3500 mm/min
Rapid feed z-axis	1750 mm/min
Feeding motor power	2,0 kW
Coolant motor power	0,5 kW
Main motor power	7,5 kW
Machine dimensions (W x D x H)	3300 x 2380 x 2750 mm
Weight approx.	7300 kg

Standard accessoires :
1.Stepless longitudinal and cross feed
2.Work light
3.Universal mill head
4.Horizontal counter bearing
5.Long milling arbor ISO 50 / 32 mm
6.Taper shell end mill holder ISO 50 / 40 mm
7.Telescope cover in z-axis
8.Universal protective device
9.Protective cover for horizontal milling
10.Central lubrication
11.Tools

Optional accessories:
1.Horizontal & vertical rotary table HV 12 - 300mm
2.Tiltable rotary table TSK 320
3.Free machine vise FSV 120
4.Two-parts milling vise MS 200
5.Hydro machine vice VH 200 with swivel base
6.Hydraulic machine vise PHV 200 with swivel base
7.Hydraulic machine vise PHV 250 with swivel base
8.Universal coolant fluid RK 12, 5 l canister
Warranty:
What about the spare part if the machine break down?
==about the machine break down, normally our policy will be as the under way
1) Our quality guarantee time is 12 months since the machine on board
2) During this period, if the machine break down owing our machine itself quality problem, we will prepare the spare parts and send to you by free within 5 days. all these will be by free.
3) If the break down is caused by the mis operation, we of course will supply you the spare parts, but we have to charge you the costs prices.
