4lz-5 Rice Harvester Grain Combine Soybean Millet Wheat Barley Small Mini Manual Full Feeding Paddy China Agriculture Farm Machinery

Product Description

Made in China, Sold to the world
Versatile, Easy, Affordable, Powerful, Reliable

Rice harvester product description

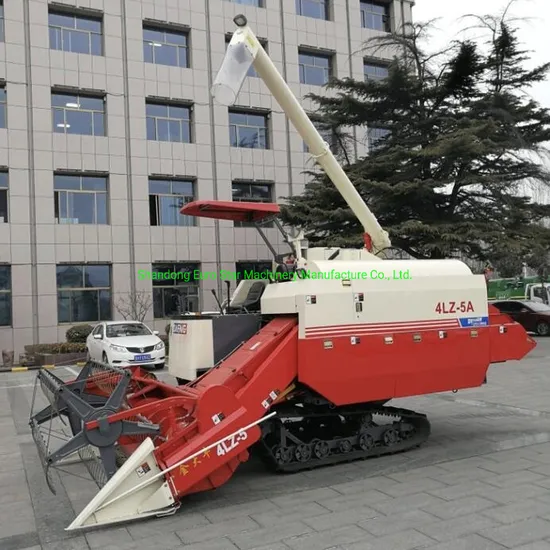

Rice harvester Product Description 4LZ-5 combine harvester is a multi-functional combine harvester, mainly used for rice, wheat, barley, corn, soybean and other grains. Can be in the field threshing, removing impurities. The harvester has the characteristics of simple operation and high working efficiency.
Main sales territory: regions Europe, the United States, Russia, Ukraine, South America, Africa, southeast Asia and Australia.
Rice harvester Product Selling Points
1. 2.2 meters cutting width, Big Hydraulic JDF80 gear box with 45cc HST, high efficiency.
2. 102HP Brand Turbo-charged Diesel Engine with stronger power and low fuel consumption.
3. 400/450/500/550*90*51mm extra wided and extended rubber track. Lower ground pressure, work in the wet field more stably
4. 340mm Higher ground clearance and increase the height between chassis and the top of track, not easy to accumulate mud. better for passing in paddy field.
5. The longitudinal axial flow threshing cylinders is more efficient and adjustable front & rear large-area sieving plates ensure the grain more clean, less breakage and less loss.
6. Widen conveyer groove with innovated cutter bar lifting system can provide a more efficient feeding and a higher lifting level, convenient for working in paddy field and maintenance, and lower noise and vibration.
7. Extremely strong Chassis; Excellent waterproof suspension wheel system; Easier turning & control with friction disc brake and special heavy-duty gearbox for hydraulic steering combine harvester.
8. Down-forward straw-discharging outlet for straws with shredding mechanism to get straw pieces back to fields. Convenient for gathering by baler machine.
9. New design of tension frame, Reinforce imported belt structure, avoiding belt being broken and track slip. And New design of all shields for easy open and maintenance.
10. Sided small grain tank of 0.3CBM and Big grain tank of 1.4CBM with 270° discharger auger & Air conditioned cab and sunshade at Option.
Rice harvester product technical parameters

Model		4LZ-5
Type		Rice & Wheat combine harvester
Cutting table width		2200 mm
Feeding volume		5 kg/s
Working efficiency		0.27~0.85 hec/h
Dimension(L*W*H)		5450×2520×2870 mm
Weight		3400 kg
Min. ground clearance		330 mm
Track grounding pressure		≤24 K pa
Operating speed		0.9~6.5 km/h
Fuel Consumption		≤35 kg/hec
Engine	Manufacturer	Famous manufacturer (Changchai)
	Model	4G33TC
	Type	Vertical,Four-stroke,Water-cooled, Direct injection
	Number of cylinder	4
	Rated power	102 HP
	Standard rotary speed	2600 r/min
Cutter type		Euro 2
Cutting table cross auger type		Spiral propeller
Reel	Type	Eccentric spring tooth
	Diameter	Φ900 mm
	Reel bar	5
Threshing mechanism arrangement		Longitudinal axial flow
Threshing Drum	Number	1
	Type	Longitudinal axial rod type
	Size (OD*Length)	Φ620*200 mm
Concave screen type		Grid format
Fan	Type	Centrifugal type
	Diameter	Φ400 mm
	Quantity	1
Rubber Track	Pitch×Section Number×Width	90mm×51×400mm (450/500/550mm is optional)
	Gauge	1150 mm
Working Gears		1,2
Cab type		Closed Type
Gearbox type		Mechanical+HST
Service brake		Wet friction plate type
Drive axle type		Hydro-static Drive
Stem shredder type		Rotary blade type
Unloading grain type	Small Grain Tank	Manual & sacked
	Big Grain Tank	Mufti-directional unloading grain
The volume of Grain Tank		1.4 M3
Re-thresher type		Blade type

Rice harvester details picture display
Rice harvester Production site display
Rice harvester Farm work Demonstration
Rice harvester packing and shipping link display
Our company produces tractors for display
Our company produces other agricultural machinery display
Factory introduction
Shandong Euro Star Machinery Manufacture Co., Ltd. is a professional agricultural machinery manufacturer integrating R&D, design, manufacturing, sales and service. The company products cover road transport machinery, harvest machinery, equipment for plant protection, agricultural implements and agricultural unmanned machinery.
As a professional machinery equipment manufacturer in China, the company has committed itself to provide all-round solution to global modern agricultural mechanization. The company has integrating high-end products and technologies resources around the world by upgrading of technologies, quality and service and bringing forth new ideas to create innovative products as so to improve reputation and market share of eurostar in the world step by step.
The company has worked out comprehensive quality manual and quality control procedure files at all levels based on ISO9001:2000, covering product development, part purchase, production and manufacturing, quality inspection, sales and after-market service, so as to control the product quality on the whole.
Supported by comprehensive quality assurance system and developed sales and service network, the company has made leaping increase of sales in domestic market via trustful quality and outstanding service mode. Besides, Most of the company's products have passed the European CE certification.products are exported to Europe, America, Latin America, the Middle East, Asia-Pacific, CIS, Africa and more than 50 countries and regions.Our products have been recognized by all foreign customers, and we are happy to establish long-term cooperative relationships with new friends.
Aiming at satisfying the customers, we have worked hard to provide excellent and quick service to customers both at home and abroad via advanced technologies, developed products and comprehensive network so as to maximize the customer satisfaction.
In future, the company will adhere to the principle of sound business operation, continuous innovation and opening up and cooperation to create more high-end
machinery and equipment based on current ones for the society and for agriculture and contribute to global modern agriculture production.
Agricultural machinery factory production equipment display
Service
One-stop business chain service support system
With an international service team with rich experience and excellent skill, company is committed to build a complete service guarantee system, which is professional, fast, efficient and comprehensive. Every consumer in overseas would receive a full-process service guarantee including pre-sales, on sale and after sales through the way of markets, spare parts, training service and technical support.
1) Market Service
Service Mode : Stationary Point + Circuit Service
Long-term Stationary Point Service
Short-term Circuit Technology Support Service
Service Process: Standard, High Efficient, Seasonable
Service Image: Professional, Unified
2) Spare Parts Service
Spare Parts Guarantee Measures: Dealer+ Spare Part Warehouse
100% original spare parts assure good quality;
Bar-code system adopted in the whole process assures accuracy and promptness;
Professional and accurate package and logistics assure safe and relieved transportation.
3) Training Service
Characteristic Training Mode: invite the technicians of dealers to factory for training, send engineers to dealers for training;
A full range of training tools, multi-language training materials, vivid training video;
Professional training teachers with rich service experience and good communication capability;
One-to-one special assignment training;
Remote online network training;
4) Technical Support
The whole process Technology support covers on sale and after-sale service.
Terms of the deal:
1). Delivery: 20 days for normal orders
2). Price: We have price on basis FOB Qingdao and CIF your destination for your choice
3). Payment terms for first order:
-----T/T 30% deposit and balance before shipment
-----100% L/C at sight
4). Payment for long terms cooperation of good reputation partners, we have SINOSURE insurance for our VIP clients, and we can offer credit service after we familiar with each other. We are looking for partnership for long-term business
FAQ:
Why choose us?
1). The quality is guaranteed due to strong technical support ,first class component ,advanced production line and strict quality control system.
2). Be leading Expert in global market for more than 5 years, China Famous Export Brand recommended by CCCME (China Chamber of Commerce for Import and Export of Machinery and Electronic Products)
3). One-stop service with a large spare parts warehouse and professional service team .No matter where you are, you are guaranteed of Eurostar' s warm reception, trustworthy and efficient professional services and persistent care.
How Shipment?
We have worked with many world famous shipping carriers and can arrange shipment to any country in the world, it can save your time and money. We can provide airfreight and ocean service.
Contact us
Mr. Duke Zhang
Shandong Euro Star Machinery Manufacture Co., Ltd.
Add: 198 Changning Street, Fangzi District, Weifang City, Shandong Province,P.R.C.
Web:eurostartractor.en.made-in-china.com
EUROSTAR CUSTOMERS ALL OVER THE WORLD
