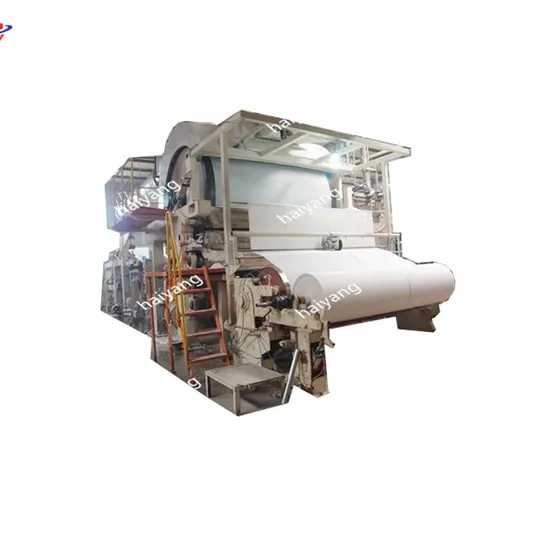

Professional Customization Tissue/Toilet Paper Making Machine From China

Product Description

Professional Customization tissue/toilet paper making machine from china
1.Buying Guide
Dear Sir/Madam,
In order to recommend tissue paper making machine and make detailed technical proposal for you as soon possible, please tell us the following technical parameters:
(1)What kind of paper do you want to produce?
(2)What kind of raw material you will use?
(3)How many tons do you want to produce per day(23hours)?
(4)What is the output paper width of jumbo roll?--mm;
(5)What is the output paper weight(thickness)?--gsm.

2.Technical requirement

Paper grade	Toilet paper
Basis weight range	13-22g/m²
Net paper width	2800mm
Working speed	200m/min
Design speed	250m/min
Drive speed	250m/min
Balancing speed	250m/min
Reeling drum roll balance	250m/min
Crawling speed	25m/min
Capacity	10t/d
Rail gauge	3700mm
Layout type	A layer floor layout, sub-left, right hand arrangement
Banner quantitative difference	±1.5%
Wrinkle rate	25-35%
Drive type	Segment drive, AC variable speed control.

3.Raw Material
1.Waste paper and virgin pulp
2.Wood , rice straw, cotton, bagasse, bamboo etc.
There will be different structures of pulp making line with different raw materials . So please make it clear in your requirements. Then we will recommend suitable machine to you.
4.Flow Chart
5.Final Products
6.Packaging

Carefully packing, to make sure the machine can arrive your side safely and soundly

Different parts packed by different material;
--Paper machine frame will be packed by plastic foam.
--Paper machine accessories parts will be packed in wooden cases very small parts packed by carton.
--Paper pulping machine packed by water-proof PVC film, and outside packed by wood case.
Tighten Packaging, Detailed Checking;
1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighten,plastic films several circle.
4. Fixed machine on the fumigated plywood pallet with iron wire
5. Wrapped with wooden board around and nailed on.
7. About Our Service Pre-sale Service ----24 hours phone, email, trade manager online services;
----We will supply the detailed project report, detailed general drawing, detailed flow process design, detailed layout factory drawing for you until meet your requirement;
----we welcome you to come to our paper making machine factory and paper mill factory to have a look and check;
----We will tell you all the necessary cost when set up a paper mill factory;
----We will answer you all the questions within 24 hours;
----We will send you various quality paper samples made by our paper machine for free;
----We can supply turn key-project service. On-purchase Service
----We will accompany you to check all the equipment made by us, and help you to make the plan of installation;
----We will supply paper machine assembly drawing, the foundation and foundation load diagram, transmission diagram, formal installation drawing, use and installation instructions and a full set of technical data after signing the contract.
After-sales Service
----We will delivery the machine as soon as possible according to your requirement, within 50 days;
----We will send rich practiced experience engineers to you to install and test the machine and train your worker for free;
----We will give you one year guarantee time after the machine can run well;
----After one year, we can guide and help you to maintain the machines;
----Every 2 years, we can help to overhaul the complete machines for free;
----We will send you spare part in lower price.
8.Design and installation: 1.We have professional team with rich experience of paper mill designed by CAD software.You only need to tell us your land dimension,we will make your future paper mill design.
2. We have very large engineer installation team,they can train and teach your worker to operate paper machine,but you should pay them salary. 9.Company Information

Qinyang City Haiyang Paper Making machinery Co.,Ltd has developed into a much more competitive company since establishment in 1999. We mainly manufactures all kinds of paper machines, toilet paper production line, Kraft paper production line, copy/writing paper production line. We have 4 paper machine producing workshops and one international trade department, and more than 110 workers and more than 20 engineers. Our factory total area is 20,000(96000)square meters. We sincerely welcome clients from all over the world visit our factory, any requirement, please contact via email, we will reply you as the first priority.

A.Business scope:1.various pulp making machine;2.various paper making machine;3.various paper processing machine;4.various spare parts;5.Technical service,such as installation,improve old paper machine.C.Technology Strength:1.1 professional technician team of 116 engineers and 12 experts;2.35 years rich practice experience;3.1 innovative research team,always follow the advanced technology of Finland,Denmark and Italy;4.skilled and careful installation team. D. Our market:Our machine sells well in more than 30 countries and regions,such as Moscow, USA,Canada,Brazil,Paraguay,Australia,Uzbekistan,Kazakhstan,Kyrghyzstan,Tajikhstan,Mogolia,Nigeria,Uganda,Egypt,Ethiopia,Bangladesh,Pakistan,Bhutan,Indonesia,Fiji Island,Saudi Arabia,Oman,Algeria,Syria,Libya,etc.High quality and perfect service have reserved customer's praise and more orders,we also establish good strategic cooperation with our client. 10.FAQ

1.Why you choose our factory?1) More than 30 years expertise in paper making machine; 2) Professional engineer team make best design for you; 3) Profession project manager supply perfect service for whole procedure, such as arranging shipment, customs clearance.

2.How to visit our factory?1) Our factory is located in Qinyang City, Henan Province, China. You need come to Zhengzhou City, then we will pick you up to our factory. 2) After you confirm visiting plan, we will arrange to pick you up and book hotel for you; 3) Welcome to visit our factory, you can check our factory facility, machine manufacturing ability, machine quality. We will also show you running machine, you can check machine working performance and get necessary information of whole project, it can help you to know well about this project.

3.Will your company supply technical service oversea?1)We will send engineers to check your land condition and make precise design of whole factory; 2)We will send engineers to make installation for you, also our engineers will train your workers to operate and maintain machine and produce paper.

4.What document you provide?1) Full set of machine; 2) Detail of operation and maintain in English; 3) Commercial invoice, packing list, bill of lading etc, according to custom requirement.

11. Contact us:

Miss Yolanda Sales manager Qinyang City Haiyang Papermaking Machinery Co., LtdAddress:Xili industrial zone,Qingyang city,Henan province,China
