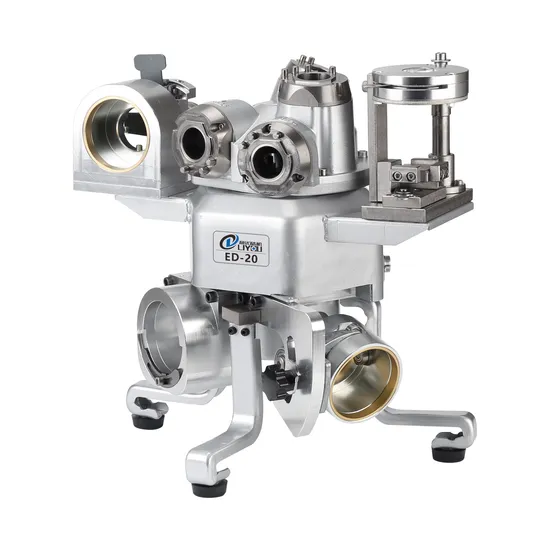

Small Integrated Grinding Machine for End Mill and Drill Bits

Product Description

Product Description
Grinding wheel: sDcwheels used for tungsten car-bide tools, CBN wheels used for high-speed steel tools.

Model	ED-20(with fine grinding)		ED-20H(with fine grinding)
Applicable diameters	End mill φ4-φ20mm	Drill φ3-20mm
Applicable flutes	2flutes,3flutes,4flutes	Twist drills
Axial angles	Secondary clearance angle 6°,Primary rellef angle 20°,End gash angle 30°
Grinding wheel	E12SDC(or CBN)	EDCBN(or SDC)
Power	220V±10%AC
Grinding scope of the apex angle	90°-140°
Rated speed	6000rpm
Outer dimensions	370*350*380(mm)
Weight/Power	26KG/600W
Normal accessories	Collet*8pcs, 2 flutes holder*8pcs, 3 flutes holder*8pcs,4 flutes holder*8pcs, case*1pcs, Hexagon wrench *2pcs,controller*1pcs, Chuck group*1 Group

Features
End mill
1.Applicable to (2\3\4-flute) tungsten carbide and high-speed steel end mill.
2.Grind rear inclined angle, blade edge and front inclined angle.
3.For different end mill grinding, no need to change grinding wheet.
4.Easy to handle,Finish grinding in 1 minute.
5.Mill cutting edge can be adjusted sultable for materials to be processed.
Drill
1.Can grind standard twist drill of direct shank and cone shank
2.Applicable to tungsten carbide and high-speed steel drills re-sharpening
3.Length of drill to be grinded has no llmitatlon.
