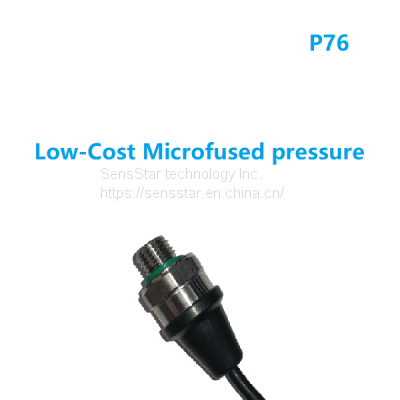

Industrial OEM Microfused pressure transducer, high stability low cost pressure transmitter P76

Product Details

Product Description

Product Description
Industrial OEM Microfused pressure transducer, high stability low cost pressure transmitter P76:P76 series microfused pressure transmitter is a kind of pressure transmitter with high performance and high cost effective,. It adopts microfused technology, sensor core and specially customized amplifier circuit, linear correction and temperature compensation, effectively protects water hammer effect, solves instantaneous overpressure impact and other problems, and can meet the pressure measurement application under various environmental conditions. High automatic production line manufacturing, strictly controlled quality, good consistency, high stability. It can be used in frequency conversion constant pressure water supply system, compressor, pipeline fire control, water pressure control system and other fields.
characteristic:Pressure range :0-7MPa standard, other ranges can be customized
Analog and digital output signal, 4-20mA, 0-10V, 0-5V output optional
Can be customized by OEM, including range, dimension, output signal, etc
Working temperature: - 40... 120 ℃, temperature compensation: 0 ℃ ~ 70 ℃
Precision: 0.15% FS, 0.5% FS optional
The customized version can be used in various hazardous areas
Compatible with all kinds of liquid and gas media
It can be used to measure gauge pressure, sealed gauge pressure, absolute pressure, compound gauge pressure, etc
Small package volume, stainless steel integrated structure, no weld, no silicone oil
High stability, high reliability, suitable for replacing ceramic pressure core, industrial mass OEM applications, low price
Optional stainless steel inputed level meter, or bottom installed level meter.

Item	Voltage output			Current output
Measure Range	0.6MPa、1MPa、1.6MPa、2MPa、4MPa、12MPa、16MPa
Accuracy	1.0%,0.5%FS with temperature compensation
Applied Pressure (proof)	2XFS
Applied Pressure (burst)	3XFS
Power	5V DC	3.3V DC	8V～28V DC	8V～28V DC
Output	0.5V～4.5V DC	0.5V～2.5V DC	0.5V～4.5V DC	4mA～20mA DC
temperature compensation	0℃～70℃
Storage	-30℃～120℃
Insulation impedance	≥100MΩ@250V DC
medium	Various media compatible with 17-4PH stainless steel and NBR
Protection level	IP67（IP68 optional）
