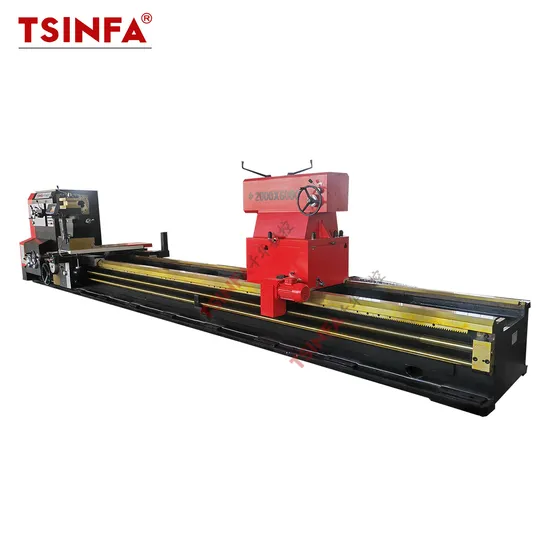

Cw61200 Heavy Duty Lathe Machine 2000mm Swing Diameter Horizontal Turning

Product Description

Product Description
CW61200 heavy-duty series lathes are universal lathes with split structure, suitable for turning external circles, end faces, grooving, cutting, boring and threading of shaft parts, cylindrical and disc parts made of different materials with high-speed steel and carbide steel tools. The bed has high rigidity, and the slide, tool holder and saddle can move quickly. In addition, this series of machine tools has the characteristics of strong rigidity, high efficiency, safety and reliability, and easy operation.

The machine has the following features:
1. The lathe bed by integrally cast lathe bed structure, internal steel board layout is reasonable, has high rigidity, machine adopts the HT250, equipment with high frequency quenching, guide rail mill grinding process, stable machine tools with high precision, high rigidity, strong cutting.
2. Sliding box has a fast moving structure, single handle visualization operation;Spindle and reversing shift to the brake and the user can choose the hydraulic control or manual control machinery.

3. The machine tool rest with single motor turning cylinder, you can also use the tool rest and longitudinal feed turning cone length.The machine it is suitable for large and medium-sized of steel and non-ferrous metal parts processing, can be cylindrical turning, inner hole, face cutting, drilling, boring and nesting.
4. The machine tool power, strong rigidity, spindle speed range is wide, suitable for strong or high speed cutting.Of spindle brake and shift to the hydraulic control, sensitive and reliable braking available button without a stop conversion speed, the forced lubrication with pressure oil in the cabinet of the head of a bed, spindle speed range has several kinds, for user to choose from.
5. Has security structure in the sliding box, which can prevent damage of lathe due to overload.

Product Parameters

Items	Unit	CW61160	CW61200	CW61250
Swing over bed	mm	1600	2000	2500
Swing over carriage/cross slide	mm	1200	1580	2100
Guide rail width	mm	1100	1100	1100
Max. Weight of work piece	ton	16	16	16
Max. Length of work piece between two centers	mm	3000-20000	3000-20000	30-20000
Spindle hole diameter	mm	130	130	130
Spindle hole taper		Metric 140	Metric 140	Metric 140
Spindle forward turning kinds	kinds	21 kinds 2-200r/min	21 kinds 2-200r/min	21 kinds 2-200r/min
Spindle reverse turning kind	kinds	12 kinds 2.25-178r/min	12 kinds 2.25-178r/min	12 kinds 2.25-178r/min
Number of feeds per revolution (longitudinal/ transverse)	kinds	56	56	56
longitudinal feed of knife rest for spindle per revolution	mm	0.10-12	0.10-12	0.10-12
traverse feed of knife rest for spindle per revolution	mm	0.025-3	0.025-3	0.025-3
Feed quantity of upper knife rest for spindle per revolution	mm	0.025-3	0.025-3	0.025-3
Metric threads mm		44 Kinds 1-120	44 Kinds 1-120	44 Kinds 1-120
Inch threads TPI		31 Kinds/24-1/4t.p.i	31 Kinds/24-1/4t.p.i	31 Kinds/24-1/4t.p.i
Module threads		45 Kinds/0.5-60	45 Kinds/0.5-60	45 Kinds/0.5-60
Diametric threads DP		38 Kinds /1/2-56DP	38 Kinds /1/2-56DP	38 Kinds /1/2-56DP
Max. travel of lower tool holder	mm	960	1010	1010
Max. travel of middle tool holder	mm	300	300	300
Max. travel of top tool holder	mm	200	200	200
Quick longitudinal move speed of tool rest	mm/min	3740	3740	3740
Quick cross move speed of tool rest	mm/min	1870	1870	1870
Dia. of tail stock sleeve	mm	240(When within 4m):265(When more than 4m), Built-in center.
Max. travel of tail stock sleeve	mm	300	300	300
Taper of Tail stock sleeve		Metric 80(When within 4m):Metric 100(When more than 4m), Built-in center.
Main motor power	kw	22	22	22
