Rhinoceros Xn10-8 Small Excavators Mini High Performance 1 Ton Excavator Minibagger Crawler Digger

Product Description

CE and EPA Approved Factory Smallest 1 Ton to 2 Ton Hydraulic Rubber Crawler Tracked
Backhoe Bucket Mini Digger Excavators 1 Ton Mini Crawler Excavators
Product Description

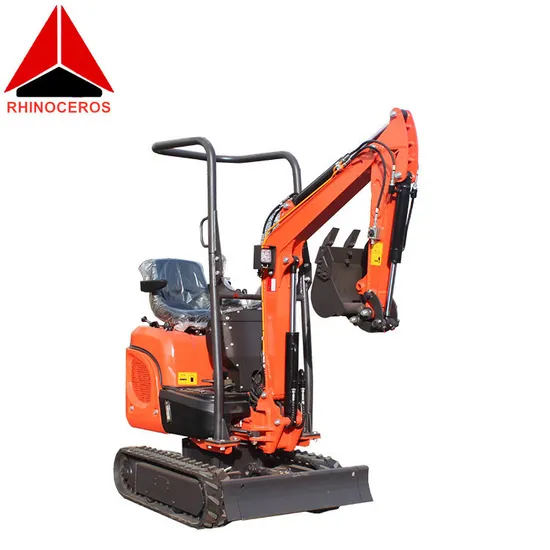

Mini Excavator XN10-8

XN10-8: 11.7hp, 1000kg, 0.025 cbm bucket, digging deapth:1568mm, can equip with Auger, Wood Grab, Roof, Ripper, Rake, 200mm Narrow Bucket, 380mm Standard Bucket, 500mm Leveling Bucket

Photos:
Available accessories:
You can install more and more accessories to discover more functions of the mini excavator
Product Parameters

Model	XN10-8
Brand	RHINOCEROS
Operating Weight	1000kg
Digging bucket capacity	0.025cbm/100kg
Bucket width	340mm
Engine	KUBOTA / KOOP
Rated power	10.2 / 7kw/2200r/min
Displacement	0.499 L
Bore stroke	70x55
Main pump	CBK-F6.8
Displacement	6.8ml/r
Swing motor	SJ-TECH (MP-1-160)
Traveling motor	EATON 310
Travel speed	1.5km/h
MAIN DEMENSIONS
Overall dimension( LxWxH)	1877x896x1990 mm
Wheelbase	770 mm
Total length of track	960mm
Platform ground clearance	376 mm
Platform back turning radius	664 mm
Chassis width	896 mm
Track width	180 mm
Chassis ground clearance	132 mm
Track height	320 mm
OPERATING RANGE
Max. Digging depth	1650 mm
Max. Vertical digging depth	1376 mm
Max. Digging height	2365 mm
Max. Dumping height	1655 mm
Max. Digging radius on ground	2560 mm
Min. Rotation radius	1200 mm
Max. Upgrade height of bulldozer blade	165 mm
Max. Digging depth of bulldozer blade	170 mm

Packaging & Shipping
After 5-7 days we will shipping your goods when we received the advance payment
Company Profile

Our factory mainly produce wheel excavators, crawler excavators, backhoe loaders and dump trucks since
1995, which have passed CE,ISO9001 certification. Our products have been exported to more than 50
countries and regions. We have agents in whole European countries, Australia, New Zealand, South Asia etc.
Below are our products list:

1) Wheel excavators: 5t - 12t; 2) Crawler excavator 0.8t -24t;
3) Backhoe loader: 6t, 7t. 4) Truck-mounted concrete pumps: 26m 33m
5) Electrical kids excavator with our Rhinoceros patents design.
All of our products have CE/ ISO Certificate
FAQ
1. Are you original manufacturer?
A: Yes, we are Shandong Landworld Commercial Co., Ltd, one subsidiary of Shandong RHINOCEROS Engineering Machinery Co., Ltd. Factory since the year 1995.

2. What kind of payment terms can be accepted?
A: Normally we can worked on T/T

3. Which incoterms 2010 terms can we work?
A: Normally we can worked on FOB (QINGDAO), CFR, CIF

4. What about the delivery time?
A: Within 7-10 days after receiving the deposit

5. What about the warranty time?
A: 1 year or 2000 hours. We shoulder all costs during the warranty period, include the freight.

6. What about the Minimum Order Quantity?
A: The MOQ is 1 unit.
