Spider Mobile Concrete Placing Booms with 13m 15m 17m Placing Radius

Product Description

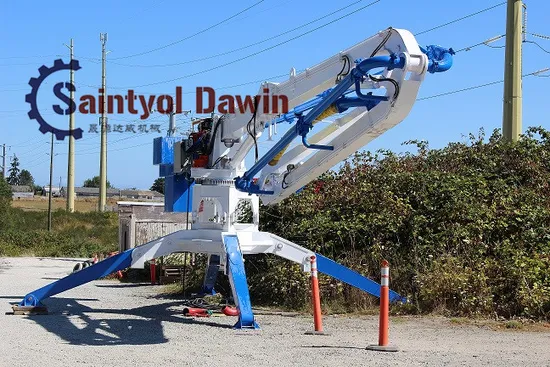

Spider stationary placing booms with 13m 15m 17m placing radius and light weight mini mobile spider 13m 15m 17m concrete placing boom for building reinforced concrete frame buildings on inner city sites
Trailer Mobile Spider Concrete Placing Boom From Saintyol DAWIN Machinery with quality control and SafeWork certificates and nice after sales services has been well shipped to U.S.A.Canada, Australia, Philippines, Afghanistan,Myanmar etc.
Advantages:
A.Auto robot cordless remote control system.
B.Proportional valve, manual levers and control system in options to ensure the placing boom could work normally in any conditions when meet problems or not.
C.Crack detection in welding manufacturing process to keep each concrete placing boom would be in safe working on job sites before shipping.
D.Labors saving.The robot concrete placing boom with cordless remote control foldable arms section, 13m is "Z" shape, 15m and 17m are "R" shape, 21m and 23m are 4 sections "M" folding, very effective in light weight and labor saving on job sites.One man to control it easily.
E.Less wearing parts.There is no extra wearing parts to the concrete placing booms except for 1 year life changing the hydraulic oil filter and the delivery pipes in 50000m3 and more.
F.Easier transportation and installation. The trailer mobile concrete placing boom could be separated in several smaller pares to be lifted by crane on job sites and installed in short time.
G.Concrete pump partner. the concrete placing boom is the right end solution of concrete pumping system, it could be moved and touch to the every place sites on the jobs platforms.
H.Short manufacturing time.Trailer mobile concrete placing from Saintyol DAWIN machinery there would be common stocks to HGY13 HGY15 and HGY17 models, orders could be short into 15 days or less
Trailer Mobile Hydraulic Concrete Placing Boom Manufacturing Specialist
In order to extend the placing range of concrete pump and enhance the mechanization of pumping construction, our company have researched and developed the new products-a series of concrete distributor HGY-13, HGY-15 ,HGY-17,HGY19 and HGY23/4R (the number is the placing radius)
The concrete distributor is the assorted equipment of concrete pump. Its application extends the delivery range of concrete, efficiently solves the problem of wall painting and plays an important role in enhancing construction efficiency and reducing the labor intensity.
This series of concrete distributor have reasonable design and reliable structure. The placing structure adopts 360° rotary arm support. The machine is operated by hands and can rotate flexibly. The tower is of a proper height so you can change the placing position freely only by pulling the robe easily. So it is highly efficient, reliable and economic.
Part II-13m: Main technical parameter

Model		HGY13
Boom length		13m
Hose length		3m
Rotatary angle		360°
Rotating speed		0.23r/min
Elevation angle		-2°~84.4°
System pressure		20Mpa
Motor power		4Kw
Revolution speed		0.2~0.3r/min
Drive mode		Fully hydraulic drive
Pipe type		φ125
Landing leg track		3.15×3.15m
Size:		6.6×2.0×3.1m
Weight	Self weight	2.7t
	Balance weight	1.8t

Part II-15m: Main technical parameter

PLACING RADIUS	15000mm
PLACING HEIGHT	14120mm
PLACING DEPTH	10300mm
BOOM ARM ELEVATION TRAVEL	0°~90°
SLEWING RANGE	360°
HYDRAULIC SYSTEM POWER	4kW
WORKING PRESSURE	20MPa
SLEWING SPEED	0.2~0.3r/min
CONCRETE PIPE DIAMETER	φ125×4
RUBBER HOSE	3m
OUTRIGGER SPAN	4000×4000mm
TOTAL WEIGHT	4500kg
COUNTERWEIGHT	2×1100kg
THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE	67kN
THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION	45kN
OVERALL DIMENSION	8900×4000×2585mm

Part II-17m: Main technical parameter

CONCRETE PIPE DIAMETER	Φ125mm
PLACING RADIUS	17m
BOOM ARM ELEVATION TRAVEL	-4°~90°
SLEWING RANGE	360°
RUBBER HOSE	3m
HYDRAULIC SYSTEM POWER	5.5KW
WORKING PRESSURE	20Mpa
SLEWING SPEED	0.2~0.3r/min
TOTAL WEIGHT	6200
COUNTERWEIGHT	2200kg
TOTAL HEIGHT	3400mm
THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL VERTICAL FORCE	104kN
THE MOST UNFAVORABLE PROCESSING CONDITION BOOM TOTAL FEET SUPPORT REACTION	69.6kN
