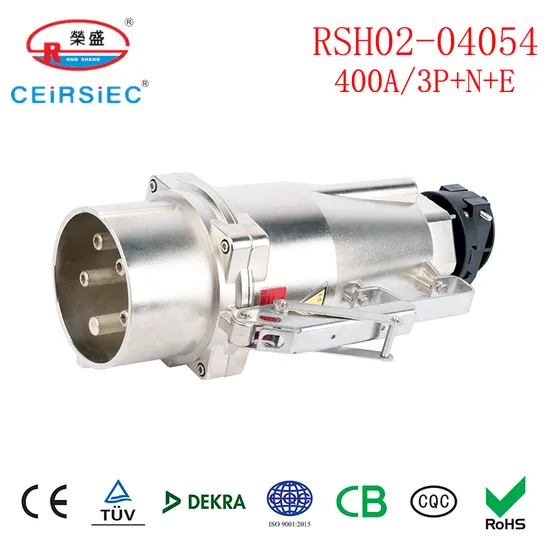

Factory Price 400A IEC Large AMP Connector for Large Current Connector for IP67 Degree

Product Description

Technical data

Size	A	200	250	400
Rated current	A	250	315	450
Rated voltage	V	1'000	1'000	1'000
Rated frequency *	Hz	50/60	50/60	50/60
Withstand voltage (1 Min / 50 Hz)	V	4'000	4'000	4'000
Protection grade		IP67	IP67	IP67
Ambient temperature	°C	-40 / +100	-40 / +100	-40 / +100
Insulation resistance (phase to phase and phase-to earth)	MOhm	> 500	> 500	> 500
Comparative tracking index	CTI	> 600	> 600	> 600
Weight 4 poles (3L+PEN)	kg	2.2	8.1	8.1
Weight 5 poles (3L+N+PE)	kg	2.4	8.6	8.6
Min. cross section, rigid conductors EN 60228 Class 1+2	mm2	70	70	70
Max. cross section, rigid conductors EN 60228 Class 1+2	mm2	150	240	240
Max. cross section pilot cable, conductor EN 60228 Class 1	mm2	4	4	4

* Other frequencies on request
Characteristice
Current 200A,250A,400A
Voltage up to 1000VAC,50/60Hz
Number of poles:4 poles(3L+PEN),5poles(3L+N+PE)
Equipped with 2 leading pilot contacts
Execution in accordance with IEC EN SN 60309-1and IEC EN SN 60309-2
Very robust design in Aluminum
Silver plated contact parts
All screws and terminals in stainless steel
Front part of the contact pins are exchangeable form the front side(250A and 400A),without removing the
connected cable
Cable gland for cable 45-66mm diameter
Function:
1, Our products have undergone the tests under the extreme conditions such as the pesky cold and hot, dustproof, immersed.
2, Certificates: TUV,CB,UKCA ,CE, ISO9001,CQC
3, German industrial standard DIN VDE6032,European/Inernational standard EN/IEC 60309.1/2 ,UL1682,BS4343
4, Application: it is widely applied in the electrical Field, particularly in the steel, Chemical, electrical, absenteeism, ports, airports, oil exploration, foods, subway ,airport, Mine diggings,and other places.
5, Besides the waterproof and dustproof advantages, have impact-resistance, anti-aging. Also have dustproof, damp-proof, anticorrosion, flame-dustproof and anti-aging properties as well as advantages such as high temperature resistance, large flexibility, good impact resistance, high degree of finish, soft contact of large current and so on.
Testing & Quality Ensure
Quality is our only faith,we have a professional Research and development team and high-quality workers sparing no efforts for pursuit of perfect production.We equip with a series of inspection devices for testing and ensuring every product we produce is qualified.
Both the quality and performance of our products can match the international standard EN/IEC 60309.1/2 ,UL1682,BS4343 and the national standard GB 11918.1/2-2014 Products have obtained international certifications, such as CE,ROHS,TUV,CB,UKCA etc.
Our Advantage
We provide different series products for different environment.Using good material high quality copper and on parts to make sure product with longer mechanical life resistance to severe weather, ageing ,alkali resistance waterproof and dust prevention.
Company Profile
Yueqing Rongsheng Introduced Electrical Appliances Co., Ltd is founded in 2000, we are professional for producing EV charger, industrial plug, sockets ,connectors, socket box for power supply, distribution box and panel, multifunctional connectors, patented waterproof safe rubber plug and sockets and etc.
Rongsheng has been granted ISO9001 management system certifications. The comprehensive product line has more than 1000 models which have been approved by TUV,CE,CQC,ROHS. The product sells well to UK, Spain, Portugal, Singapore, Turkey, Russia, Korea, South Africa... more than 60 countries and regions.
