Factory manufacture industrial candle processing machine making for wax candle

Product Description

Product Description
Factory manufacture industrial candle processing machine / machine making for wax candle
The brief introduction of Candle processing machine/machine making for wax candle
1. Candle wax melting machine:
1. Candle wax melting machine consists of three layer (inner stainless steel board, heat-conducting layer and insulating course),
2. it is equipped with wax oil releasing switch and conduction oil releasing outlet.
3.Also it can match 380V or 220V according to customer’s requirement.
4. Electric hot tube heating the conduction oil and melt paraffin wax with the heat of conduction oil.
Change the solid wax into liquid wax before making the candle.
5. There are temperature controller, indicator light, AC contactor and wax temperature sensor or
temperature automation.
The main parameter of Candle wax melting machine

Model	Volume (kg)	Voltage (v)	Motor (kw)	Inside size (cm)	Dimension(cm)	Weight (kg)
JXR-50	50	380/220	6	50×38×44	92×65×78	110
JXR-100	100	380/220	8	75×45×48	117×70×83	145
JXR-150	150	380/220	9	90×49×50	140×74×85	160
JXR-200	200	380/220	10	100×55×60	151×75×87	185

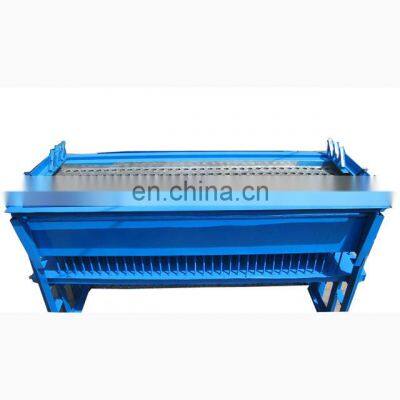

2. The pillar / taper / spiral candles making machines
1.We usually manufacture candle making machine according to our customers’s requirement,
these years mainly produce 2 lines to 10 lines wax models tube.
2.The candle with the mold clamp unit clamp wax in aluminum alloy plate.
3.The machine province labor, high efficiency, skilled workers each operation 4 -8 sets of
candle making machines at the same time.
4.The wax candle making machine clamp unit choose aluminum alloy manufacture, wax models tube using
seamless stainless steel tube after strench forming, polishing refined but become, have the best surface finish, anti-corrosive, cooling fast, good sealing performance

Model	Capacity	One piece candle weight	The dia. Of candle	Weight
JX-2-A	56pcs/time 300-350pcs/h	5-100g	8-28mm	85kg
JX-2-B	80pcs/time 550-600pcs/h	5-100g	8-28mm	96kg
JX-4-B	160pcs/time 950-1000pcs/h	5-100g	8-28mm	150kg
JX-6-C	240pcs/time 1200-1400pcs/h	5-100g	8-28mm	200kg
JX-10-D	400pcs/time 1800-2400pcs/h	5-100g	8-28mm	220kg

My friend, if you have any special requirement about any models of our industrial candle processing machine / machine making for wax candle pls tell us, we welcome you and
manufacture machines according to your required.
