350L Tank Volume Pet Plastic Machine
| US$23,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
UP-230T PET
Type
Tube Head Injection
Structure
Horizontal
Plastic Type
Thermoplastic
Plasticizing Way
Screw Type
Clamping Way
Hydraulic
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Heating Power
16kw
Machine Weight
6.3t
Tank Volume
350L
System Pressure
16MPa
Transport Package
Film Packing
Specification
5.8*1.55*2.15
Trademark
UP
Origin
China
HS Code
84771090
Production Capacity
500sets Per Year
Product Description

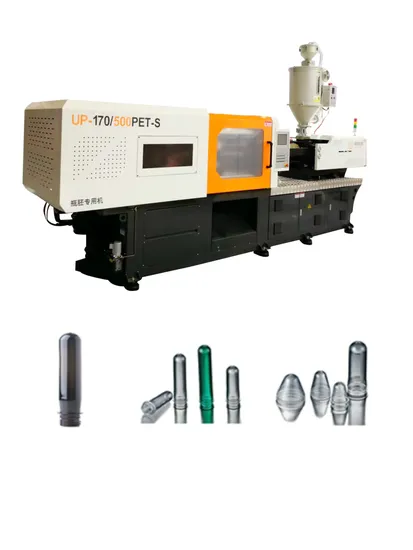

PET Injection Molding Machine
Ningbo Union Power Machinery Co., Ltd.
Introducing our latest innovation - the 230T PET injection molding machine. Designed specifically for PET preform injection molding, this machine offers a special plasticizing module with a length-diameter ratio of 22:1. This unique design optimizes power and injection parameters to enhance plasticizing output and quality, ultimately reducing defective rates.
Special plasticizing module for PET
Large injection weight capacity
Powerful power source configuration for reduced cycle times
Parallel plasticizing and mold closing actions for faster molding cycles
Experience the efficiency and precision of our PET preform injection molding machine. Trust Ningbo Union Power Machinery Co., Ltd. for top-quality injection molding solutions.
| Technical Parameters | Model UP-230T PET | ||
| Injection Unit | A | B | C |
| Screw diameter (mm) | 50 | 55 | 60 |
| Shot Volume (cm3) | 461 | 558 | 664 |
| Injection weight (g) | 553 | 669 | 796 |
| injection pressure (Mpa) | 169 | 142 | 121 |
| Screw speed (rmp) | 155 | ||
| Clamping Unit | |||
| Clamping force (KN) | 2300 | ||
| Open stroke (mm) | 475 | ||
| Max Mold height (mm) | 550 | ||
| Min Mold height (mm) | 220 | ||
| Space between tie bars(mm) | 530*530 | ||
| Ejector force (KN) | 70 | ||
| Ejector stroke (mm) | 135 | ||
| Others | |||
| Pump pressure (Mpa) | 16 | ||
| Motor/driving power (KW) | 22(21.2) | ||
| Heating power (KW) | 14.2 | ||
| Machine dimension (M) | 5.8*1.55*2.15 | ||
| Machine weight (T) | 6.3 | ||
| Oiltank cubage (L) | 350 | ||
