Yovon CS-8 Paper Tube Paper Core Making Winding Rolling Machine/ID30-100mm/Max Length 1200mm

Product Description

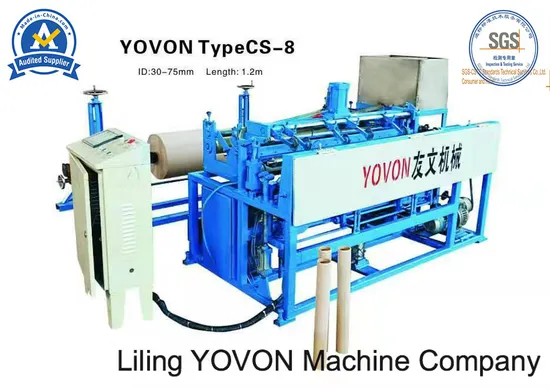

YOVON CS-8 type full-auto Paper Tube Rolling Machine
Yovon industry stretch film parallel paper tube paper core rolling machine
cs-8 type tube making machine (full-auto)
1. DETAIL MESSAGE:
full-auto paper tube making machine for parallel industry paper core . it can roll (full-auto) glue and cut tube and drop out tube on one machine. It need pump. The machine is used for producing parallel paper tube and then cut it into short tubes automatically. It consists of paper stand, gluing device (automatic cycle system with diaphragm pump), auto-water-adding system, paper cutting device, tube forming, tube-cutting and discharging device. The machine is equipped PLC and step motor with machine. .
It is used for producing all kind of paper tubes/cores, such as fireworks tubes, cloth core, cotton yarn, fax paper, plastic-wrap, paper can for tea packing and many other paper tubes.
2. Technical parameters

Technical parameters CS-8 type
Number of roll paper	3-10 layer
Tube ID	30-100mm
tube thickness	2-10mm
Applicable paper gram	180-300gsm
Max. Paper tube length	1200mm
Roll core mold fixed	Three claws chuck
Winding head	2 rolls of belts
Cutting tube mode	Single circular knife cutting 5pcs knives with machine
Glue way	Single sides
operation	1 person
Paper delivery speed	12-15sheets/min
Speed control	transducer
Applicable glue	white glue/Tapioca starch glue
Input power	6*1.1KW/380V/50HZ/3phases
weight	1000 kg
Main frame size	2200×2500×1400mm
Air pressure	0.8-1.0kpa
Air compressor power	7.5KW
