Factory Price Battery Internal Resistance Tester Battery Analyzer Digital Battery Analyzer Digital Battery Tester Battery Test Equipment Manufacturer

Product Description

HDGC3915 Battery Internal Resistance Tester
Measurem Range
Conductance	20~19,990S
Internal Resistance	0.01mΩ-120mΩ
Voltage	0.000v--16v
Min Measurement resolution
Conductance	1S
Internal Resistance	0.01mΩ
Voltage	1mV
Measurement Accurancy
Conductance	±0.5%rdg ±6dgt
Internal Resistance	±0.5%rdg ±6dgt
Voltage	±0.2%rdg ±6dgt
Working Power Supply
Power Supply	5V, Recharge lithumn battery
Power consumption	Constinuous working for 10 hours

Product Profile

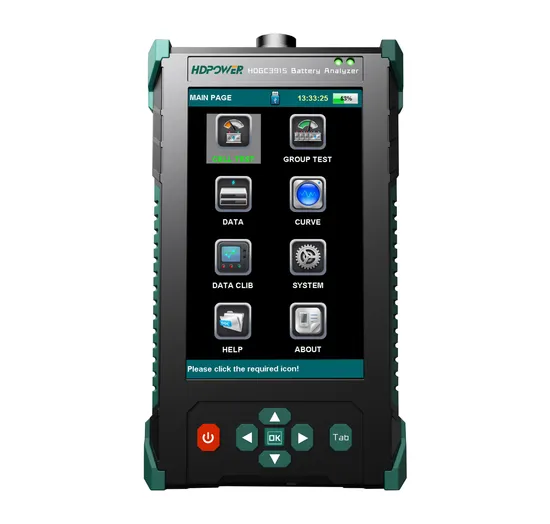

Battery Internal Resistance tester adopting colorful resistive touch screen is a digital and portable tester for fast and accurate measurement of battery running status parameters, which is flexible and convenient to use by finger touching and pen touching .
Battery Internal Resistance Tester is designed using the advanced AC discharge measurement method to test voltage, resistance and conduct of cell battery online. It can store , process the detected data and alarm the battery failure. The tester can accurately and effectively discern the condition of cell battery. The instrument saves, queries, deletes and exports the test data. The upper computer software analyzes and displays the test data through various charts and graphs . It automatically generates the battery test report
Product Feature 1.Two operation ways : operation by colorful touch LCD screen and button . It is easy to operate to meet users with different usage habits.
2.Data storage method : internal storage and external storage. It can save 300 sets of test data and each groups 500 cell battery data for search and analysis.
3.Automatical identification measurement function of postive connection and reverse connection.
4.It has the data record and qury function of voltage , internal resistance , conductance, capacity . It can directly estimate and analyze the battery remain capacity .
5.Powerful data management software, friendly interface. It has the function of data management, print , analysis , report statistics, automatic generation of test reports.
6.Less than 0.5kg , Handheld design, automatic measurement in the whole process.
7.Large capacity lithumn battery for power supply and long time measurement
8.Compact size, Easy carry ; Exquisite appearance , excellent struction ; Beautiful interface, smooth operation.
