Low Insertion Loss Coaxial Cable TV 75ohm Female to Female 6kv Ground Isolator

Product Description

Description
CATV Ground Isolator,Frequency Range:5-1000MHz, Surge Protection:6KV (All Ports), Impedance:75Ω, Insertion Loss (5-1000MHz):0.3dB (typ) / 0.7dB (max), Return Loss (5-10MHz):18dB (typ) / 16dB (min), Return Loss (10-1000MHz):18dB (typ) / 16dB (min), F Female to F Female Connector,Firing Voltage:65V and 90V and 230V is optional,Dimensions:24 (Φ)×83(L)mm, Weight:49g.
Feature
⊙ Low Insertion Loss
⊙ Return Loss 22dB (typ)
⊙ Frequency Range Up To 1.5GHz
⊙Voltage Withstanding AC 2kV (Max)
⊙ DT-ISO-MF6-1G65 with Surge Protector Firing Voltage 65V
Parameter

Parameter	Specifications
Impedance	75Ω
F Connector Type	Female to Female
Frequency Range	5 -1000MHz
Insertion Loss (5-1000MHz)	0.3dB (typ) / 0.7 dB (max)
Return Loss (5-10MHz)	18dB (typ) / 16dB (min)
Return Loss (10-1000MHz)	18dB (typ) / 16dB (min)
Surge Protection	6kV (All Ports)
Dimensions	24 (Φ)×83(L)mm
Weight	49g

Ordering Information

Model	Firing Voltage
DT-ISO-FF6-1G65	65V
DT-ISO-FF6-1G90	90V
DT-ISO-FF6-1G230	230V

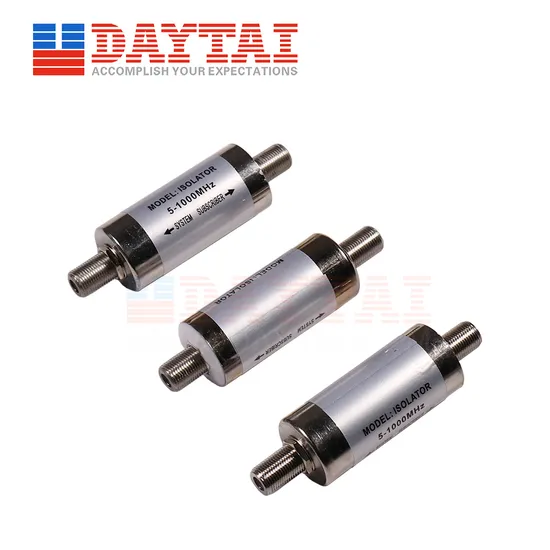

Product Picture
FAQ
Q1:What's the delivery time?
Re:The lead time is 10~15 days after order confirmed.
Q2:Can you send me a free sample?
Re: We are willing to send you free sample, if you would like to pay the shipping costs.
Q3:What's your payment terms?
Re: 30% in advance, and 70% before shipment.
Q4:What's the payment method?
Re: We accept T/T, Western Union, and Paypal.
Q5:How to ship the items to me?
Re: Courier (DHL,TNT,FEDEX,UPS,EMS) , By Air, By Sea are available.
