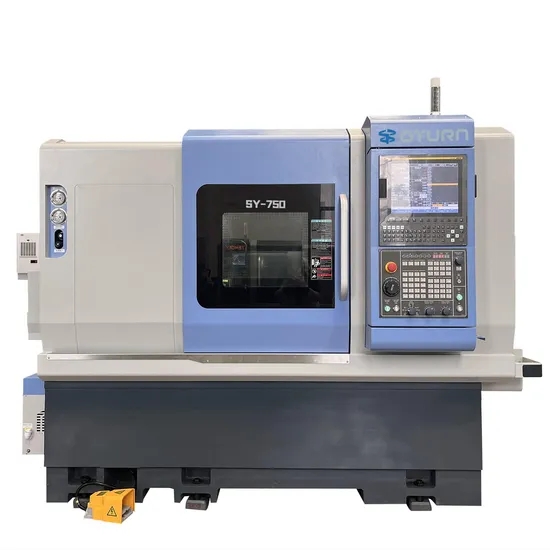

High Precision and High Rigidity CNC Lathe Machine with Y Axis /CNC Slant Bed Turning Machine with Power Turret Sy750

Product Description

Product Description
1.Adopt direct drive synchronous electric spindle device: magnetic ring incremental encoder (sine and cosine) positioning accuracy: 20 arc seconds, C-axis indexing accuracy: 40 arc seconds. 1.Effectively eliminate spindle vibration, and the nose deflection accuracy is within 0.002MM. Improve the surface finish of the workpiece, 2.adopt a rear-mounted rotor, which makes installation and maintenance faster, 3.the spindle motor is equipped with a cooling system to suppress the influence of thermal displacement and ensure a constant operating temperature of the spindle. The spindle system has undergone strict dynamic balance testing. The good accuracy retention, high rigidity and high efficiency enable the whole machine to not only complete finishing, but also perform rough machining and heavy cutting for users. It is especially suitable for mass production of complex shapes and high smoothness. product.
2. World-class high-rigidity overall design servo turret. Equipped with a high-precision clutch to ensure its positioning accuracy and repeatable positioning accuracy. It is equipped with a servo motor to drive the cutterhead to rotate for bi-directional or arbitrary tool selection. The hydraulic principle is used to loosen and clamp the clutch, and the proximity switch feedbacks the clutch action signal to quickly and accurately achieve the tool change action.
3. The machine tool is equipped with THK linear guides and ball screws. The heat-treated and precision-ground ball screws can ensure the best accuracy and durability. Each axis adopts a direct transfer axis structure and a double-anchor pre-relay method to prevent thermal changes. The bit quantity will be reduced to the minimum, greatly improving the processing accuracy. The high-rigidity, large-sized, heavy-duty linear slide rails maintain intact accuracy when the machine is subjected to impact, and the displacement is smooth and low-noise, which can extend the service life.
4. This machine provides users with a complete hydraulic and lubrication system, using high-quality hydraulic pumps, hydraulic valves and other components to greatly reduce the failure rate. The hydraulic and lubrication systems are designed to be simple and reliable. The machine tool adopts centralized quantitative automatic lubrication.
5. Programmable hydraulic tailstock and high-rigidity structure of the integral tailstock can eliminate vibration and improve stability. It can be controlled by programmable or manual buttons, and the sleeve telescopicity is realized by hydraulic cylinder, which is convenient, fast and reliable.
6. It adopts Taiwan rotary chuck cylinder and optional automatic chip removal device, which can greatly reduce the labor intensity of the operator and achieve safe and efficient production. The above functional components can be programmed and controlled, and various types of equipment can be designed and installed according to the special requirements of the user. Special fixture. Product Parameters

	Name	Unit	SY750
Travel	Max. bed rotation diameter	mm	Ф690
	Max. processing diameter	mm	Ф430
	Max. machining rotation radius on the tool holder	mm	Ф280
	Max. processing length	mm	660
	Distance between two tops	mm	780
Spindle Hydro cylinder Chuck	Spindle nose	/	A2-6
	Spindle through hole diameter	mm	Ф66
	Max. rod hole diameter	mm	Ф52
	Spindle maximum speed	rpm	4300
	Spindle direct drive motor power	kw	18/22
	Spindle direct drive motor torque	kw	105-227
	Hydraulic cylinder/chuck	/	8"
X/Z axis feed parameter	X/Z/Y axis motor power	kw	2.4/2.4/1.8
	X/Z/Y axis travel	mm	268/755/±50
	X/Z/Y axis rapid movement	mm/min	24/24/8
	Positioning accuracy	mm	±0.005
	Repeat positioning accuracy	mm	±0.003
	Slide rail type	mm	pin roller 35
Servo Turret parameters	Powered tool turret type	pcs	BMT55-12T
	Power turret power	Kw	5
	Max. speed of driven tool holder	rpm	5000
	Outside diameter tool holder specifications	mm	25x25
	Inner diameter tool holder specifications	mm	Ф40
	Adjacent tool change time	sec	0.15
Tail stock parameters	Programmable hydraulic tailstock	/	suspect routine
	Max. travel of tailstock	mm	650
	Sleeve diameter	mm	Ф80
	Sleeve stroke	mm	80
	Sleeve taper	/	MT#5
Outline dimensions	Covered area approx.	mm	2900*2100*1800
	Mechanical weight approx.	kg	4800
Other	Cutting fluid tank volume	L	180
	Hydraulic unit box volume	L	40
	Hydraulic oil pump motor power	kw	1.5
	Lubricating oil tank volume	L	2
	Automatic lubrication pump motor power	W	50
	Cooling water pump power	W	750
