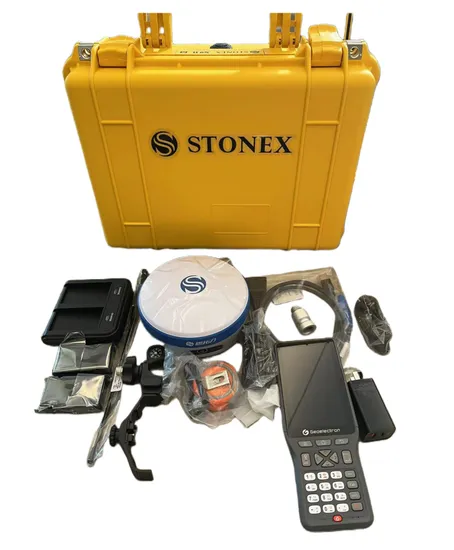

Stonex S9II GPS Gnss Survey Equipment Tilt with Um980 Survey Receiver Rtk

Product Description

Product DescriptionStonex S9II/S900A Survey GNSS RTK With 800 Channels
Stonex S9IIA is equipped with an high performance GNSS board 800 channels and capable of supporting multiple satellite constellations: GPS, GLONASS, BEIDOU, GALILEO, QZSS and IRNSS, including L-Band correction.
A fast internet connection is guaranteed through the 4G GSM modem for receiving correction data and managing maps in the background. In the extraordinarily compact structure there is the integrated UHF radio and the Bluetooth and Wi-Fi modules that allow an always reliable data flow to the controller, making the S9II the perfect system for a GNSS + Rover Base. Stonex S9IIA integrates E-Bubble sensor that allows the measurement of difficult points with the pole not levelled. It is possible to measure points with an inclination of the pole up to 30° even in harsh Environments and in the presence of magnetic fields. S9II is also equipped with the optional IMU technology. Fast initialization, up to 60° inclination.Detailed Photos
Product Parameters

Model	S9II
Satellite system	Beidou+GPS+GLONASS+ Galileo
Track features	Channel	800
	GPS	L1 C/A,L2E,L2C,L5
	GLONASS	L1 C/A, L1P, L2 C/A(GLONASS M), L2P
	BDS	B1,B2
	GIOVE-A	L1 BOC, E5A, E5B, E5AltBOC1
	GIOVE-B	L1 CBOC, E5A, E5B, E5AltBOC1
	SBAS	WASS,MSAS,ENGOS,QZSS
Performance indicators	Static measurement of plane precision.	±(2.5mm + 1ppm)RMS
	Static measurement elevation accuracy.	±(5mm + 1ppm)RMS
	RTK measures plane precision.	±(10mm + 1ppm)RMS
	RTK measures elevation accuracy.	±(20mm + 1ppm)RMS
	SBASPositioning (typical)	Plane precision <1m 3DRMS
		Elevation accuracy <5m 3DRMS
	Initialization time	<10s
	Initialization reliability	>99.99%
Environmental indicators	Working temperature	- 30ºC~+65ºC
	Storage temperature	- 40ºC~+80ºC
	Waterproof and dustproof	IP67
	drop	Resistance to 2 m drop (concrete hard ground)
	Waterproof	Immersing 1 meter in water (30 minutes)
	humidity	100% condensation resistance
Memory and data	Internal Storage	Onboard 4G SD card expansion, maximum support 32G.
	differential output	RTCM2.3,RTCM3.0,RTCM3.X,CMR,CMR+
GNSS antenna performance	The internal integrated quad-feeder microstrip antenna, zero-phase center, built-in multipath suppression plate.
	bluetooth	built-in,V2.0 Class2
	Network communication	Built-in WCDMA 3.5G network communication module;Customizable CDMA2000 3G network communication.
Wireless communications	Communication protocol	TrimTalk is interchangeable with international brand radio and can be customized with domestic hosts.
	UHF radio	Built-in transceiver	0.5W/2W
		outer launch	5W/35W
		Working frequency	410-470MHZ
Physical and power characteristics.	size	φ19cm×9.9cm
	Weight	1.2kg
	Battery capacity	Single block 3400mAh
	keys	2
	service time	6 hours
industrial-grade controller P9	operating system	Windows Mobile 6.5
	Hardware platform	AM335X frequency 1GHz
	onboard memory	RAM:512MB DDR3 onboard memory 4G
	Display	3.7 inches Blanwiew TFT,480*640VGA resolution ratio
	Battery	7.2V/3400mAH
	Waterproof and dustproof	IP67
	Working temperature	- 30ºC~+60ºC
	Storage temperature	- 30ºC~+70ºC
	drop	Resistance to 2 m drop (concrete hard ground)
	camera	5 megapixel autofocus.
	communication	Wi-Fi bluetooth /USB OTG/3.5G
