8va Heavy Cutting Vertical Turret Milling Machine for Precision Electronic Components

Product Description

√ Suitbale for household and daily necessities mold processing.
√ Excellent accessories, strict quality control, long durability.
√ Hard-grinding guide way, thick machine body, effctive casting, the whole machine is durable.
√ Milling head key parts from Taiwan, bearings from Chinese famous brand.
√ High efficiency, strong cutting machine performance.
WOKRTABLE Ultra-audio quenching, precision grinding and scraping guide. Rotary table is optional.
TURRET MILLING HEAD Turret milling head can swivel 45° (forward-backward), rotate 90° (left-right). Easy to mill at special angle.
SPINDLE High precision R8/NT30/NT40 spindle, spindle runout:0.003mm

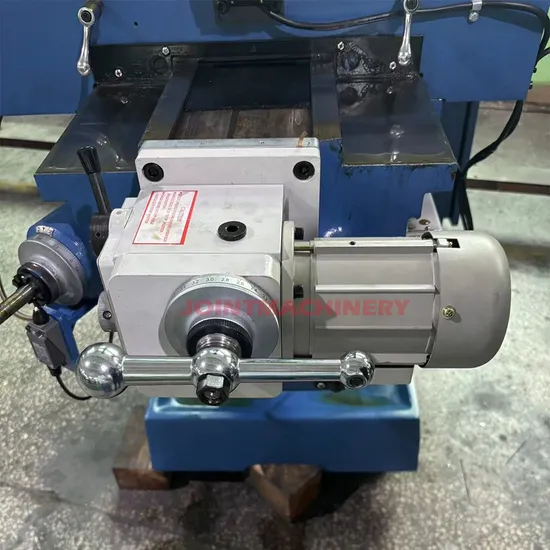

X/Y/Z AUTO FEED X/Y axis auto feed, Z axis electric lifting, improve machining efficiency.
DRO Based on customer needs, optional 2-axis DRO or 3-axis DRO.

High Precision 3 Axis Milling Machine Vertical Type China Manufacturer

Item		Unit	8VA
Table size		mm	1524*360*99
Travel	Longitude(X)	mm	1150
	Crossward(Y)	mm	500
	Vertical(Z)	mm	500
Travel of spindle quill		mm	140
Max diatance from the spindle nose to table		mm	690
Spindle	Rotation speed (Step speed milling head)	50HZ rpm	58-3000
	Rotation speed (Step speed milling head)	60HZ rpm	70-3600
	Taper	-	NT40
	Rated power	HP	5HP
Tilt angle	Forward and Backward	°	±45°
	Left and Right	°	±90°
Dimension		mm	2300*2000*2900
Net weight		kg	2600
