Peanut Harvester with 4WD Hydraulic Drive Technology

Product Description

Product Parameters

Model		4LZJ-2500A
Drive type		4WD(Hydraulic)
Dimensions(L*W*H)(mm)		6560*2875*3530
Weight(kg)		6870
Working width (mm)		2500
Engine	Horsepower	150HP
	Engine Model	YUCHAI
	Engine rated speed(r/min)	2300
Production Efficiency	Productivity(hm²/h)	0.3-0.7
	Fuel tank capacity(L)	240
	Mini clearance(mm)	260
	Feeding speed(kg/s)	3
Thresher	Grain tank(m³)	2.3
	Sorting method	Vibrating screen +Centrifugal fan
	Stem and vine treatment method	Concentrate
	Peanut harvesting mechanism type	Eccentric spring tooth type
	Picking drum type	Longitudinal axial flow blade type
Chassis	Wheel base(mm)	3100
	F/R wheel space(mm)	F:1920/R:1755
	Tyre Size(F/R)	F:15-24/R:10/75-15.3

Detailed Photos

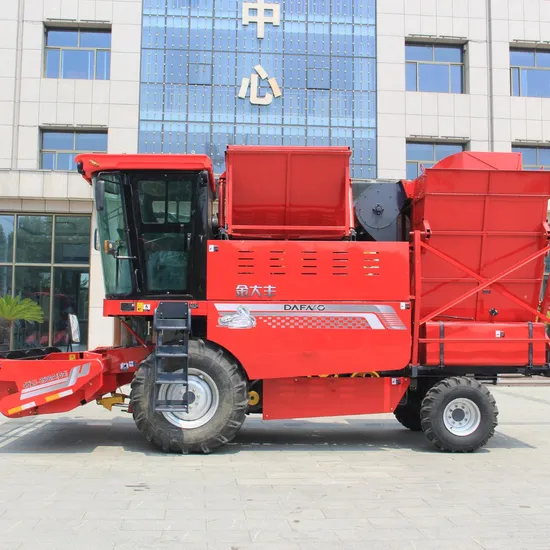

Model: 4HZJ-2500A Introducing the groundbreaking 4HZJ-2500A Peanut Harvester-a marvel of modern agricultural engineering. This pioneering four-wheel drive, self-propelled machine is meticulously crafted to transform peanut farming into a seamless and highly efficient operation. Experience the future of agriculture as this sophisticated harvester masterfully executes multiple tasks with unparalleled precision: from peanut picking and sorting to cleaning, collection, and stalk gathering-all in one continuous, efficient stride. Enhance your farm's productivity and efficiency with this cutting-edge innovation that sets new standards in agricultural machinery.
Product Description
More detailed technical information about 4LZJ-2500A
1. The High-Efficiency Marvel: Embark on a journey of unparalleled power with our machine, boasting a mighty 150-horsepower engine strategically set at an elevated position for superior performance. Revel in the innovative airflow negative pressure rotary dust removal mechanism on the water tank cover, masterfully crafted for exceptional heat dissipation. Furthermore, our cutting-edge intelligent fuel-saving switch ensures efficiency, whether in transport or during the harvest, promising cost-effective operations.
2. Unmatched High-Temperature Resistance: Witness the pinnacle of durability and reliability with our machine's main transmission components, featuring high-quality imported bearings such as the pickup slide bearing and the peanut rolling drum's front bearing. These exceptional bearings offer stellar sealing performance and stand resilient against high temperatures, guaranteeing long-lasting endurance and trustworthiness.
3. Supreme Flexibility: Unleash the power of flexibility with our advanced braking system, a harmonious blend of front disc and rear drum mechanisms enhanced by hydraulic assistance for effortless operation. Elevate your harvesting experience with the pick-up device platform, supported by dual oil cylinders for stable and precise cutting platform lifting. The steering system, equipped with an independent constant current gear pump, delivers light and agile maneuvering like never before.operate, and reliable performance. The pick up device harvesting platform uses double oil cylinder support, stable lifting of the cutting platform. The steering system adopts an independent constant current gear pump, light and flexible steering.
4. Comfort Redefined: Immerse yourself in a world of unmatched comfort with our fully transparent cab design, offering a breathtaking expansive view. Monitor the grain box status with effortless ease from within the cab. Stay in control and informed with the top-installed image system, providing a clear and comprehensive view of the foreign matter conveying process.
5. Low Damage Rate Excellence: Elevate your peanut collection with our centrifugal fan mechanism, designed to minimize shell damage with precision. Experience the high-speed suction-type grass removal system, ensuring smooth and efficient grass clearance, leaving nothing but pristine results.
6. Stellar Stability: Command the terrain with supreme control thanks to our hydrostatic drive, offering an unmatched seamless experience. The robust four-wheel-drive system promises superior stability, effortlessly navigating through sandy or muddy terrains without slipping, ensuring you stay on course.
