Professional Suppliers for Clean Room 2mm/3mm Thick Anti-Static PVC Floor ESD Roll

Product Description

Product Description
Homogeneous Anti-static PVC Roll Floor be made of PVC, plasticizer, stabilizer, coupling reagents and conductive materials, has permanent anti-static function.
Surface uses PHPP technology. The full name of "PHPP" is "continous pressure airtight glossy surface treatment". It uses the physical method, rolling the flooring in high pressure airtight space to increase its density, sealing the surface pore and adding surface gloosiness and scratch resistance. Thus the floor will be anti-pollution permanetly, easy to maintenance and preventing surface damage, making it more glossy and durable.
Structure:
Product Parameters

Item	Conductive Tile	Dissipative Tile
Thickness EN428	2.0mm 2.5mm 3.0mm	2.0mm 2.5mm 3.0mm
Size En426	600 * 600mm 900 * 900mm	610 * 610mm 900 * 900mm
Weight EN430	2.0mm:3.8kg/m² 2.5MM:4.8kg/m² 3.0mm:5.8kg/m²	2.0mm:3.8kg/m² 2.5MM:4.8kg/m² 3.0mm:5.8kg/m²
Electric properties DIN51953,ASTMF-1550 or NFPA99	2.5*10^4~10^6Ω	10^6~10^9Ω
Decay time SJ/T10694-2006(IVI<100V)	EQUAL 0.4S	EQUAL 0.4S
Charge voltage SJ/T10694-2006(IVI<100V)	EQUAL 70	EQUAL 70
Fire resistance grade DIN 4102	B1	B1
Combustion properties SJ/T11236-2001(<10s, reached FV-O grade)	EQUAL 0.35s IFV-0	EQUAL 0.35s IFV-0
Amount of anti-wear SJ/T11236-2001(≤0.020g/cm²,100r)	EQUAL 0.014	EQUAL 0.014
Anti-wear Properties EN660pt	ITEN-T<2.0mm³	ITEN-T<2.0mm³
Wheel pressure EN425	No influence	No influence
Residual concavity EN433,DIN51955	0.03mm(2.0mm) 0.035mm(2.5mm) 0.04mm(3.0mm)	0.03mm(2.0mm) 0.035mm(2.5mm) 0.04mm(3.0mm)
Demensional stability EN 434	≤0.10%	≤0.10%
Color fastness IDO105BO2	At least 6	At least 6
Resistance to chenmicals DIN423,DIN51958	Offers excellent resistance ask for special sheet	Offers excellent resistance ask for special sheet
Impact sound absorption VLI,ISO104,ISO717	Approx 2dB	Approx 2dB
Standard for health care facilties NFP A99	Confirms to the requirement of NFPA99 in effect at the tine of installation

Flooring Advantages
(1) Products Property
KANGMAN Anti-static PVC Vinyl Floor, permanent anti-static property. The products are widely used in the place of precise instrument and professional equipment, including electronics, clean room, computer room, hospital, telecommunication, airspace, etc.
(2) Environmentally-friendly Materials
Comply with ISO14001, using European advanced production technology. Insure the raw materials and production meet European standard.
(3) Durable
Anti-static Vinyl Flooring has excellent stability and wear resistance, meet the usage of all kind of public huge traffic site, durable, perfect stress resistance and wear resistance.

Flooring design
Installation Instructions
KANGMAN Conductive tile and Static-Dissipative tile should be installed on sub floors that are leveled, smooth and free of cracks. Residual humidity should be under 2.5% tested with the CM Dumb test. Tiles Floor, adhesive and installation site should reach a temperature of at least 18ºC at least 24 hours before installation. and paste the tiles with qualified conductive glue below 105 Ohm. For futher details on installation methods, please ask us.
Maintenance:1.Karmeen floor is unpermeable, the surface dirty is easy to clean.
2.Avoid sharp scratches on the floor by hard object, and maintain a smooth surface.
3.Cleaning the floor by neutral detergent, dry after washing, then coated with anti-static wax.
4.Serious dirty or spots can be used to clean the floor cleaning machine.

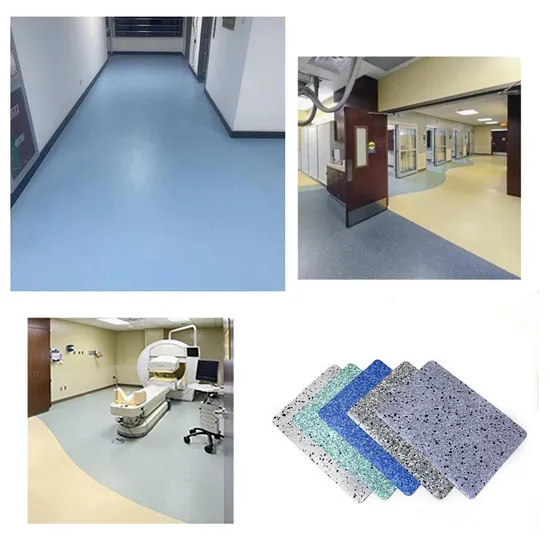

Application
Widely applied to electronics, microelectronics, telecommunications, network floor, clean room, computer room and other precision instrument and room for equipment operation.
Warranty
The produces conductive properties have been tested before out of the factory, in compliance with quality standards.
The sales representatives can also provides technical guidance or support in the job site.
Whithin 1 year from purchase, no product defects in the materials and technology. Compliance with Karmeen regulations for the installation and maintenance. Karmeen gives 10-year guarantee (except for human reasons).
Above guarantee replace any other assurances, including, but not limit to, any guarrantee implied in the business feasibility or special purpose.
Company Profile
KANGMAN Group was founded in 2003, we specializing in Homogeneous, Heterogeneous, Quickfix floor, Wall Panel, LVT, SPC Click Flooring, Loose Lay, Dry Back, WPC and New Decorative Materials with 2 manufacturing quarters located in Shanghai and Zhejiang Province. Prized with "Shanghai High-Tech Enterprise" and "Shanghai Famous Brand", Participated in establishing national PVC floor standard. We have 135 dealers in China. Our products has been exported to more than 50 countries and regions all over the world. Turnover at 150 million USD per year.
Certifications
FAQ
Q1: Are you a flooring manufacturer? A1: Our company integrated with manufacturer and trade. Q2: What about the payment methods? A2: We accept T/T, L/C , DP for big or small amount, you can pay us by PayPal, Western Union, Money-gramand etc. Q3:How much does it cost to ship to my country ? A3:It depends on seasons and which country. Q4: What's your delivery time? A4: Very Quick Lead Time. 7-25 days. We keep stock for our regular products.Q5:Can i print our logo on your products? A5:Yes, of course. Q6:Can i order some sample for our testing? A6:Yes,our product sample is free. Q7:Can your customize my products in special shape? A7:Yes, Customized Colors and Size. Q8:How can you make sure we receive the products with high quality? A8:Our QC team will inspect each batch of products before delivery.All the raw material we use eco-friendly material and meet EU standard and US uniform, we have certificates of CE,ISO 9001,ISO14001,SGS.
