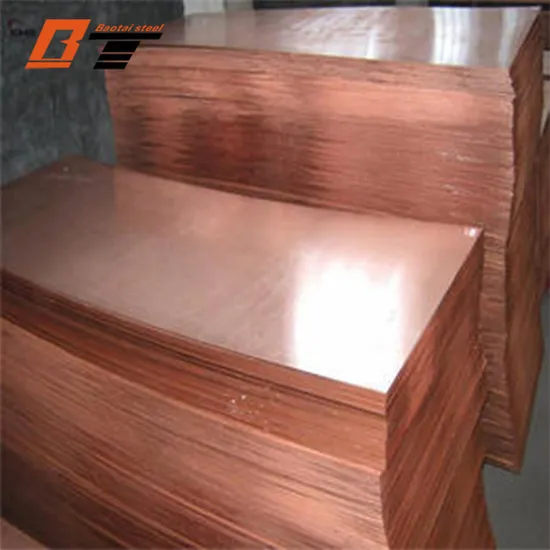

Customized 0.1mm 0.5mm 0.8mm C1100 Red Pure Copper Sheet Plate in Stock

Product Description

ASTM C10100 C11000 C12000 Copper Sheet / ETP DHP Copper Plate
1.5mm copper sheet plate sheet prices 4ft x 8 ft
Pure copper is a soft metal. When the surface is just cut, it is red orange with metallic luster, and the simple substance is purplish red. Good ductility, high thermal conductivity and conductivity, so it is the most commonly used material in cables and electrical and electronic components. It can also be used as building materials and can form many kinds of alloys.
Copper alloy has excellent mechanical properties and low resistivity, among which bronze and brass are the most important.
In addition, copper is also a durable metal, which can be recycled many times without damaging its mechanical properties.

Copper Sheet, Copper Plate,Copper Bar
Material	C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000, C44300,C44400,C44500,C60800,C63020,C65500,C68700,C70400,C70600, C70620,C71000,C71500,C71520,C71640,C72200,etc.
Specifications	Thickness	0.1mm-200mm
	Width	10mm-2500mm
	Length	10mm~12000mm,or as required.

CHEMICAL COMPOSITION

Grade			Chemical Composition(%)
	GB	JIS	Cu+Ag	P	Bi	Sb	As	Fe	Ni	Pb	Sn	S	Zn	O
Refined Copper	T1	C1020	99.95	0.001	0.001	0.002	0.002	0.005	0.002	0.003	0.002	0.005	0.005	0.02
	T2	C1100	99.9	-	0.001	0.002	0.002	0.005	-	0.005	-	0.005	-	-
	T3	C1221	99.7	-	0.002	-	-	-	-	0.01	-	-	-	-
Oxygen Free Copper	TU0	C1011	99.99	0.0003	0.0001	0.0004	0.0005	0.001	0.001	0.0005	0.0002	0.0015	0.0001	0.0005
	TU1	C1020	99.97	0.002	0.001	0.002	0.002	0.004	0.002	0.003	0.002	0.004	0.003	0.002
	TU2		99.95	0.002	0.001	0.002	0.002	0.004	0.002	0.004	0.002	0.004	0.003	0.003

PHYSICAL PROPERTIES

Grade	Temper	Hardness(HV)	Tensile strength(Mpa)	Elongation(%)
C1000 C1200 C1220 etc.	Soft	<60	>205	≥40
	1/4H	55-100	217-275	≥35
	1/2H	75-120	245-345	≥25
	H	105-175	>295	≥13

Our company can provide a series of copper products
Copper coil, copper plate, copper strip, copper rod, copper pipe, copper wire, etc.
APPLICATION
1)Further making utensil. 2)Solar reflective film 3)The appearance of the building 4)Interior decorating:ceilings,walls,etc. 5)Furniture cabinets 6)Elevator decoraction 7)Signs,nameplate,bags making. 8)Decorated inside and outside the car 9)Household appliances:refrigerators,microwave ovens,audio equipment,etc. 10)The consumer electronics:mobile phones,digital cameras,U disk,etc.
