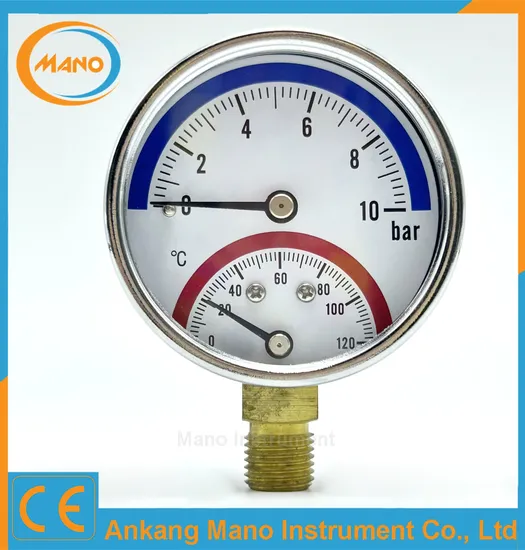

63mm Black Steel Case Thermometer Gauge for Bottom Connection

Product Description

Product Description Applications
1. For pressure and temperature measurement.
2. Boiler and heating industry.
Features
1.Combined indication for pressure and temperature.
2.Case with check valve.
3.Scale ranges to 0 … 16 bar, 0 ... 160 °C.
Description

Product name	Thermo-manometers
Measuring range	Pressure: 0 ... 0.1 to 0 ... 1.6 Mpa Temperature: 0 ... 100 to 0 ... 160 °C
Diameter	80mm 100mm
Stem length	46mm 64mm 100mm (we also can make other length, when customers have requirements)
Case Material	Steel or Plastic
Wetted parts/ Measuring system	Brass-copper alloy
Thermowell	Brass
Thread size	M20*1.5 G1/2 NPT1/2 etc.
Mounting type	Bottom or Back
Lens	Glass
Dial	Aluminium-white
Pointer	Aluminium-black
Accuracy	2.5%
Design	Bimetal thermometer system and bourdon tube pressure system.

Detailed Photos
Company Profile
FAQ Q:Do you have MOQ?
A:We don't have MOQ
Q:Can you supply OEM, ODM services?
A:Yes, we can provide OEM for our products, and for some of the products, we provide ODM.
Q:Can we check and confirm the dial plate before production?
A:Yes, for customized products, we can send you the dial plate pic for your checking and confirming before production.
Q:What is your packing for export products?
A:(1)For pressure gauge, thermometer, we usually use neutral box with neutral carton.
(2)For digital pressure gauge, we usually use plastic seal and box, with neutral carton.
(3)For pressure calibrator, comparator pump, we usually use box with carton or wooden box.
Q:The quality of your products.
A:Our products are strictly following international measurement and calibration standards. And all products are with 100% inspected by skilled workers.
Q:What is our payment terms?
A:For sample or trial orders, we can use West Union and PayPal, TT etc. For large orders, we accept TT, LC or other payment terms after negotiation.
Q:What is your shipping way?
A:Sea transport, train transport, air transport or express like DHL, UPS, TNT, FEDEX etc. are all available for us. We will choose the best way according products and your requirements.
Q:Can you provide us sample? Is it for free?
A:Yes, we are very willing to provide you samples. For products lower than 10USD, we can send the free sample for you.
Q:How long is your product warranty?
A:You can enjoy free warranty service for products withinone year from the date of sale. For cases where the free warranty service is not met, our company provides paid technical service and repair service for the life of the product.
Options
"HOW TO ORDER" SEQUENCE
Model /Nominal size / Scale range / Thread size / Process connection / Options
