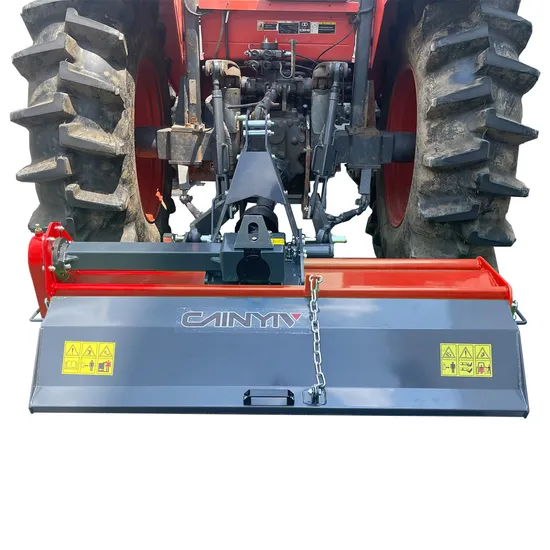

Triangle Hanging 3point Linkage Rear Mounted Rotary Tiller

Product Description

Product Description
Light weight rotary tiller for compact tractors 15-30hp.
It is used for small farms, fruit and vegetables, orchards, gardening and nurseries.Suitable for soil conditioning and weed control, seedbed preparation, puddling in small fields.It is compatible for mini and lower HP tractor.
Can loosen & aerate soil 4 to 5 inches deep.

MODEL	TL 85	TL 95	TL 105
Structure Weight	155kg	175kg	195kg
Tilling Width	800mm	900mm	1000mm
Tilling Depth	90mm	90mm	90mm
NO. of Blade	20	20	24
PTO Turning Speed	540r/min	540r/min	540r/min
Tractor HP	12-20hp	12-20hp	15-22hp

MODEL	TL 115	TL 125	TL 135
Structure Weight	215kg	235kg	255kg
Tilling Width	1100mm	1200mm	1300mm
Tilling Depth	90mm	90mm	90mm
NO. of Blade	24	28	28
PTO Turning Speed	540r/min	540r/min	540r/min
Tractor HP	15-22hp	18-22hp	18-22hp

Detailed Photos

Packaging & Shipping
Installation Instructions
Company Profile
Changzhou Qianyi Machinery Technology Co.,Ltd existing staff 50 people, in 2021 passed the ISO9001 quality system certification and passed CE certification.
Accumulated after years of development, we have many advanced equipment, like Germany fast Trulaser3030 laser cutting ,machine, CNC punch press TruPunch1000, CNC shearing machine, CNC lathe, bending machine, seam welding machine and more than one formula 1-160-1 high-end mechanical production equipment.
We provide good design, to help customers reduce costs of development and improve production efficiency. With complete testing equipment, strict quality control and abundant technical force, our machines are mainly exported to European, North American and Southeast Asian countries.
All of our machines are with one year warranty. We often insist on one principle"Better quality!Better service!Better price!"
