Product Description

DAS TX600-6PY Torno CNC High Precision Metal Automatic Hydraulic Power Slant Bed turret cnc lathe Machine with Y-Axis Product Description
1.The machine tool control system adopts Taiwan's new generation system, and other CNC systems are optional.
2.The base and the bed are integrally cast with resin sand, which has strong shock resistance and is not easy to deform. The bed is inclined at 45°, and the large cariage and tool post are inclined to make the operation of the machine tool and the chip removal convenient. Beautiful appearance design,less space occupation.

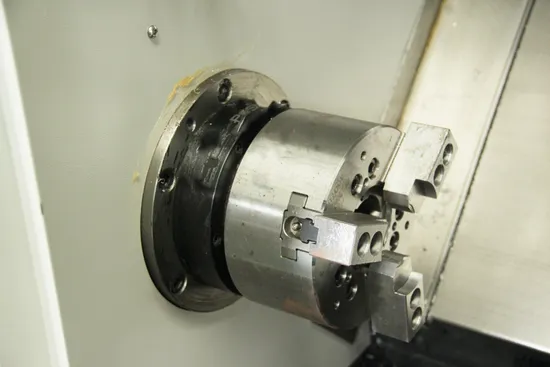

3.The main shaft adopts Taiwan high-precision main shaft, which contains Japanese NSK precision bearings. The main shaft flange can be directly installed with a three-jaw self-centering hydraulic chuck or other elastic chuck.
4.The transmission part of the machine tool adopts high-precision P3 ball screw and high-speed linear rail from Taiwan HIWIN/PMI. The X-axis and Z-axis adopt high-rigidity linear rails, and the optimized span between the rail and the rail, low resistance, high rigidity, high precision, and displacement speed up to 24M/min, improve work efficiency
5.It can process long shafts and large disk products; lender bars can be equipped with a tol holder.
The Y-axis realizes co mpound processing, and the Y-axis function of the turret can cope with the
processing of complex shapes.

Model	TX600-6PY
Max.Swing Diameter(mm)	460
Max.Turning length(mm)	300
Spinle nose	A2-5
Spindle speed(r/min)	100-5000/6000
Spindle bore(mm)	56
Spindle motor power(kw)	7.5
Tool installation	BMT40-15 Stations turret
Max.number of tools(pcs)	15
X1/Z1 axis travel(mm)	200/400
Y1/Y2 travel(mm)	±35(Y-Axis:Linear Guide)
X1/Z1 axis sevo motor power	3.1/3.1
X2/Z2 axis sevo motor power	3.1/3.1
Guide form	Linear guide way
X/Y/Z axis fast moving speed(m/min)	24/18/24
Net Weight(kg)	3500
Machine Dimensions(L*W*H)	2730*1130*1635mm

1. Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other Brand including GSK,Fanuc,Siemens are OK!
2. Machine body is cast in one piece. The lathe bed tilts by 45°and the inclined placement of lathe carriage.
3.Taiwan's high-precision spindle, comprising Japan NSK precise bearings; three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
4.The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
