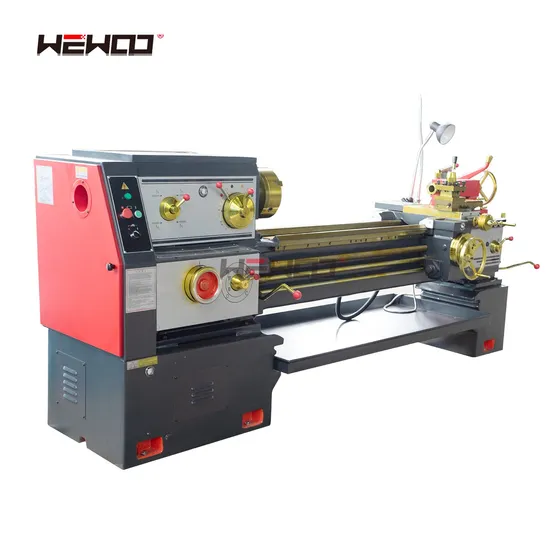

Ca6140 Conventional Horizontal Lathe Manual Lathe Machine Metal Cutting Lathe Machine

Product Description

Ca6140 Conventional Horizontal Lathe Manual Lathe Machine Metal Cutting Lathe Machine
Product Description
The main performance characteristics:
1 Machine tool head box and bed, tailstock, Supporting plate, etc. the combination of surface between manual scraping, machine to undergo a rigorous inspection, effectively ensure the machine tool accuracy and stability.2 Machine adopts high strength cast iron, copper and chromium special materials are added, the bed width 400mm, bed rail quenching depth up to 4mm, effectively improves the abradability and stability of the machine.3 The machine tool bed head box lubrication uses the pump to carry on the circulation forced lubrication, in view of the south hot weather, has guaranteed the bed head box cleanliness and the heat radiation characteristic, has effectively extended the bearing and gear's service life.4 Wafangdian Bearing is used in machine tool spindle, the spindle through hole diameter 80mm, machine tool gear with precision grinding, can effectively improve the hardness of the gears, to reduce noise of the machine.5 Machine tool uses the domestic brand lead screw, the silk mother uses the high quality bronze alloy to guarantee the wear-resisting property and the precision maintenance.6 The machine adopts high strength four station turret shank size: 25x25mm.Application:1 CA series ordinary horizontal lathe is used to turning internal and external cylindrical surface, conical surface, and other rotating surface, turning various metric and inch, modulus and pitch thread, and the pitch diameter of the thread and pull the drilling and oil tank etc., is general very strong horizontal lathe, Widely applicable batch processing of various shaft and disc parts.2 The series lathe bed width in general lathe, 400mm rail width has higher stiffness, rail surface by intermediate frequency quenching, wear-resistant durable.3 Handy machine operator concentration, slide plate is provided with a quick moving mechanism. Using single handle operation, humanization.4 The rigidity of the machine tool structure and the transmission stiffness are higher than the general lathe, the power utilization rate is high, which is suitable for the strong cutting.5 Before leaving the machine tool factory, the machine tool is tested strictly according to the inspection procedure, and the machine tool is tested to ensure that the machine tool has good stability and reliability.
Specifications

Specifications		CA6140	CA6150	CA6161	CA6166	CA6180
Max. Work piece Diameter of Bed		400mm	500mm	610mm	610mm	800mm
Max. Work piece diameter of tool holder		220mm	300mm	370mm	370mm	540mm
Max.Work piece Length		750/1000/1500/2000/2200/3000/4000mm
width of bed		400mm
Cutter rod section		25×25mm
Spindle axis	Spindle speed range	16-1400rpm(24steps)
	Spindle bore	52mm ,(80mm),[105mm]
	Mores	No.6(MT6)(Φ90 1:20)[Φ113:20]
feed	Feed Quantity	(64 kinds)(for each)
	Metric thread	(1-192mm) (44 kinds)
	English thread	(1-24tpi) (21kinds)
	Modular thread	0.25-48(module 39 kinds)
	Diameter thread	1-96DP(37 kinds)
Tailstock	Tailstock spindle travel	150mm
	Tailstock spindle diameter	75mm
	Taper of tailstock spindle hole	Morse NO.5 (MT5)
Main motor		7.5KW(10HP)
Package dimensions	length 750mm	2440×1140×1750
	length 1000mm	2650×1140×1750
	length 1500mm	3150×1140×1750
	length 2000mm	3650×1140×1750
	length 2200mm	4030×1140×1750
	length 3000mm	4800×1140×1750
	length 4000mm	4800×1140×1750
weight	Length	G.W./N.W.(KG)
	Length 750mm	2170 /2060
	Length 1000mm	2260/ 2140
	Length 1500mm	2420 /2290
	Length 2000mm	2790/ 2640
	Length 2200mm	2940/ 2790
	Length 3000mm	3450/ 3300
	Length 4000mm	3750/ 3600

Detailed Photos

QUENCHING BED 400MM
WIDTH
Width is bigger than normallathe,with high hardnbesswear-resisting
RAPID TRAVERSE DEVICE
Rapid device for carriage single handto operate
CHUCK AND TOOL POST COVER
Export configuration,
Protectthe operator
FOOT BRAKE
Export configration need extra cost.
STEADY REST,FOLLOW REST
Length above 1500mm steady rest andfollow rest are standard

Easy to operate
safe and durable,
good practicality
Company Profile
FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
